This data-logging software package enables the user to view and log up to 100 data channels from Broadweigh wireless shackles.
Each sensor mapping value on the 100-channel data logging software is shown in a re-sizable window. User-defined mathematical functions can be applied to each data channel & display e.g. the reading from one shackle or the summed readings from many shackles. Conditions such as communication loss, low battery, and data range over/under can be indicated by an audible and visual alarm.

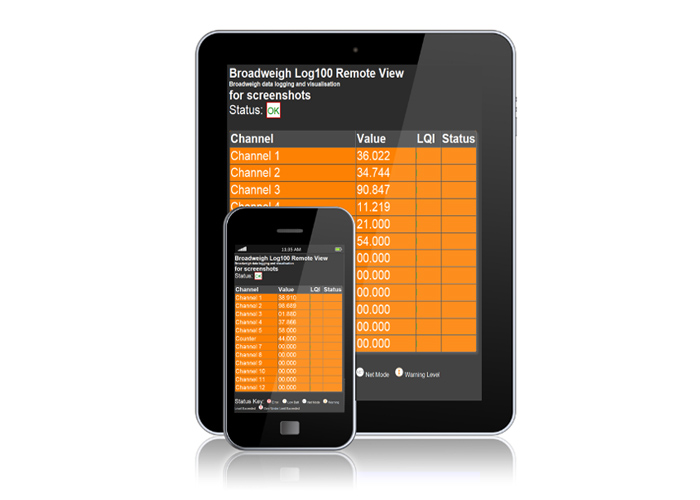

Logging of data can be initiated at an overload point or when approaching or leaving overload. BW-LOG100 load monitoring software also allows logging on demand or at set intervals. BW-LOG100 now has a graphics feature that incorporates drawings and pictures into the data-logging display. Remote access to data using tablets and smartphones via a Webserver is another feature of BW-LOG100.

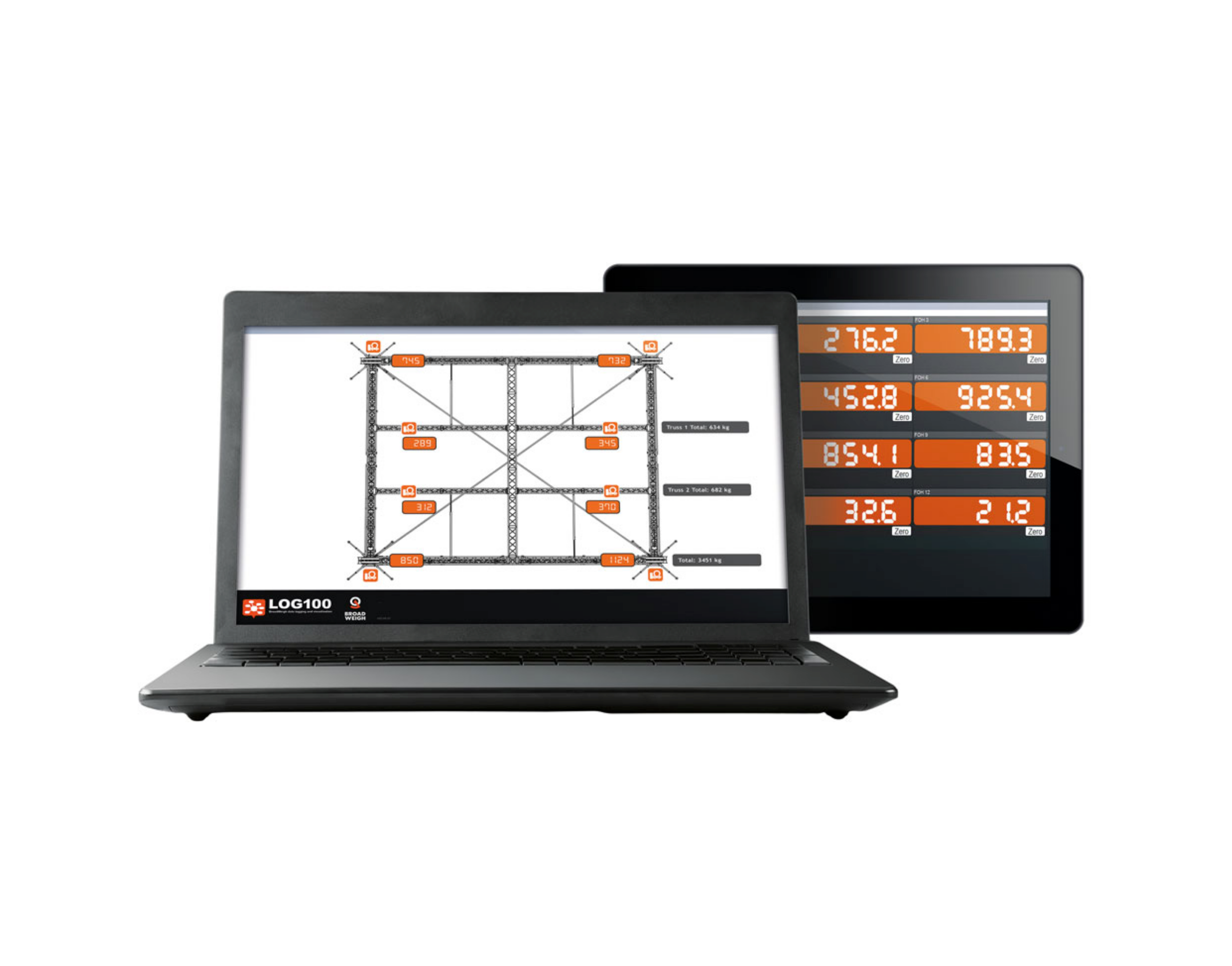

After the first stage of sensor mapping display channel design, graphical backgrounds can be constructed from pictures that can show the data in many different ways including digital format or bar display. BW-LOG100 can accept up to eight separate views (or pages) of a structure which can quickly be navigated between. JPG, GIF, PDF, and DXF are just some of the image formats that can be imported.
- Viewing and data logging for up to 100 channels simultaneously
- Fast and straightforward installation
- Compatible with Windows XP, Windows Vista, Windows 7, Windows 8, or Windows 10
- Logging files (.csv) saved to Excel files
- Representation of peak, valley & delta
- Data graphs
- Programmable mathematical function for displays
- Graphics feature that incorporates drawings and pictures into the display
- Remote access to data using tablets and smartphones via a web server feature
- Log feature includes automatic, manual, and overload settings
- Communication loss, low battery, and data range over/under indicated by audible and visual alarm
