Broadweigh’s award-winning Bluetooth system sends data straight to your iOS or Android device, bringing affordable wireless load monitoring to smaller-scale rigging applications.

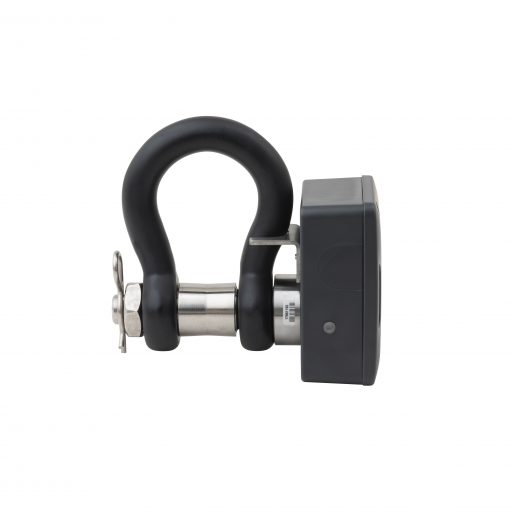

This 3.25t Crosby shackle with integrated Bluetooth Low Energy 4.0 provides high precision, static weighing direct to the Broadweigh App, for easy viewing on your iOS or Android device.

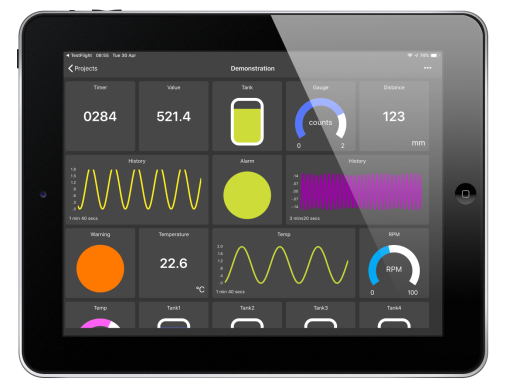

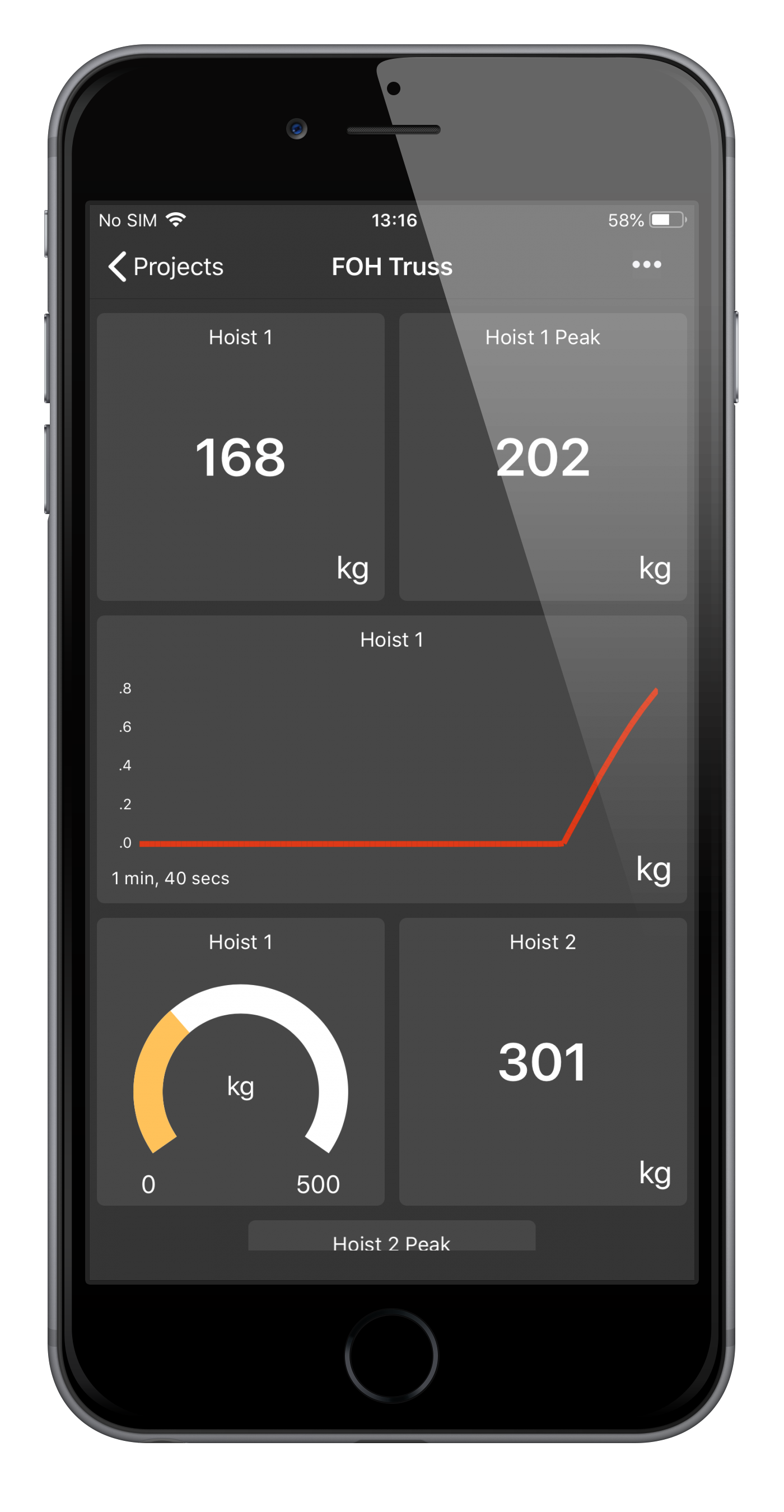

Free to download for iOS / Android devices, the app contains all the tools required to configure and display data from the shackles in range and requires no other accessories. Enables easy configuration of multiple dashboards for individual load points or groups of cells, including time charts.

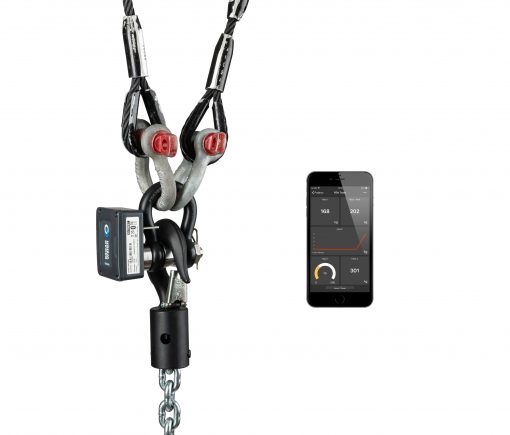

Incorporating the market-leading Broadweigh Crosby shackle, the Broadweigh Bluetooth shackle can transmit up to 90 m (295 ft) with calibrated units included in the transmitted values.
Compared to the original Broadweigh load shackle it delivers:
– A simpler system, sending (multi-point real-time) data straight to your smart device.
– Shorter range, transmits up to 90 m (compared to 800 m)
– Fewer connections, a maximum of 12 load shackles (compared to 100) but without loss of accuracy, build quality, or battery life.
- Ideal for close-range, static monitoring for 1-12 load cells
- Transmits up to 90 m (295ft) line of sight
- 3,250 kg WLL
- Accuracy typically ±1% of load or ±25 kg, whichever is greater
- Bluetooth Low Energy 4.0 for up to 10 months of battery life
- Transmits directly to the free and intuitive Broadweigh app (available for iOS or Android)
- Supplied pre-calibrated
- Requires no other accessories
- Flexibility to upgrade to standard Broadweigh wireless shackle
- Lifetime warranty (subject to annual service and calibration)
- Rated IP67
- Operating temperature: -20 to 55ºC
- Storage temperature (no batteries): -40 to 85ºC
Broadweigh BB-S325 Wireless Bluetooth Shackle 3¼ ton
Broadweigh BB-CASE Bluetooth Case to hold one insert
Insert to fit BB-CASE, fits four BB-S325
