MCP4-LV Case Motor Controller was designed to fulfill all the requirements of clients who are looking for a cost-efficient alternative hoist controller with premium quality. It is equipped with high-quality Schneider Electric / Eaton components and is housed in a robust plastic case.
The main benefit is the link feature for GO and E-STOP buttons of several linked devices.
Suitcase controls up to 4 low voltage hoists.
Compatible with hoists from: CM Lodestar, GIS, Trabes, Prolyft and Verlinde/Stagemaker.
Additional information
Features
Different specifications

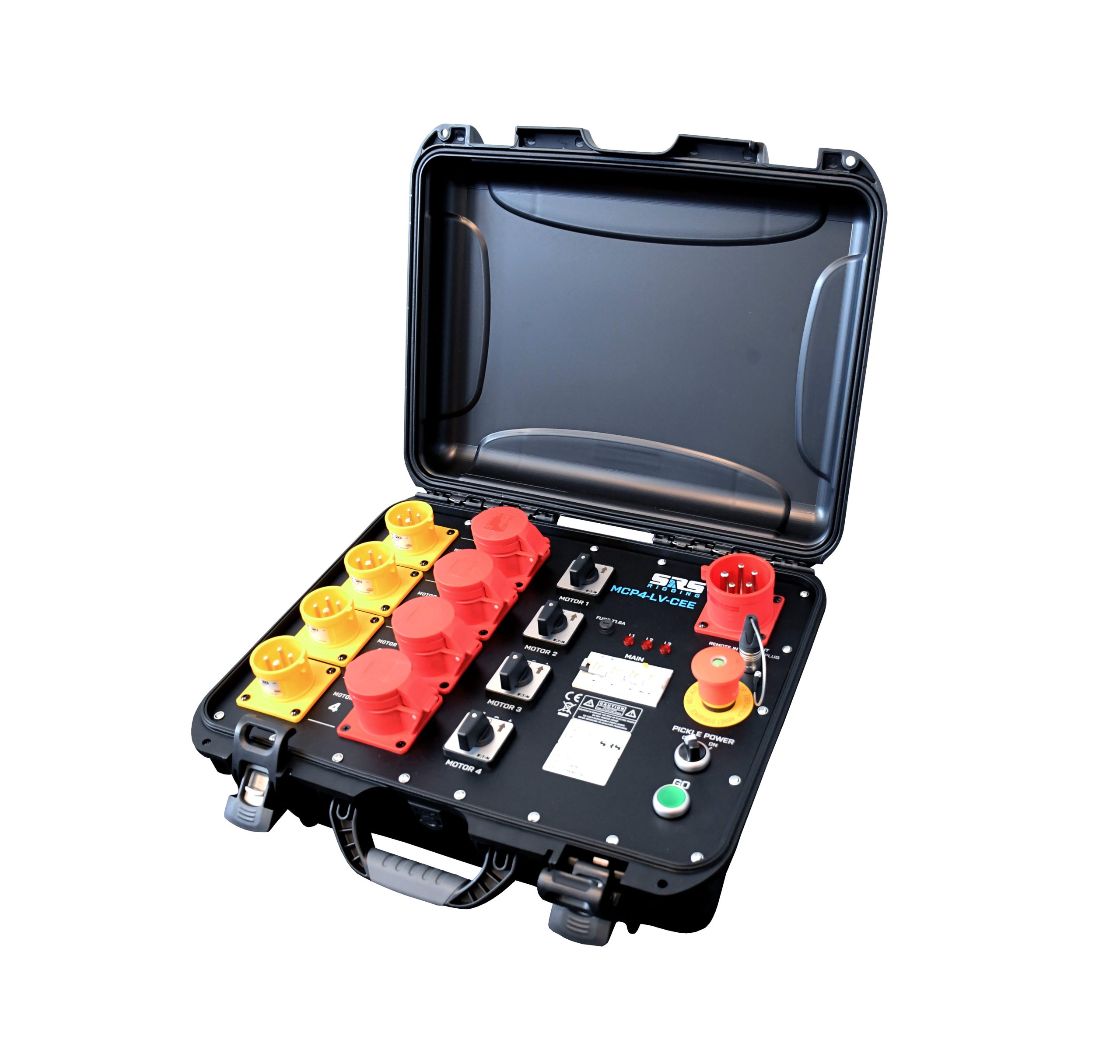

MCP4-LV-CEE

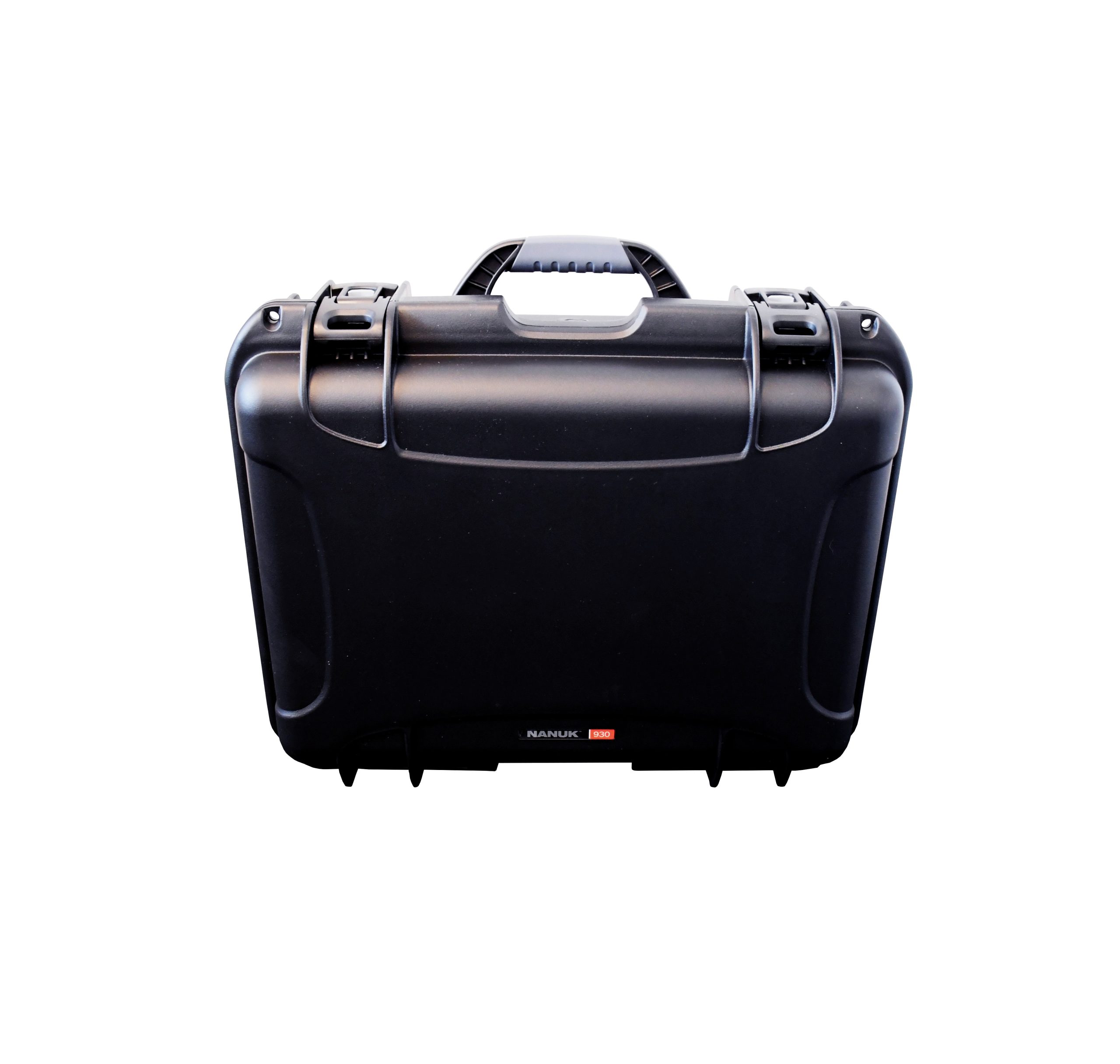

- Dimensions: 340x425x170mm (Nanuk 930 Case)
- Weight: 9,2 kg
- Warranty: 2 years
- Hoist types: BGV D8, BGV D8+
- Manual Phase Check & Correction
- Max Channel Load 0.9kW
- Individual Channel Direction Selection via Cam Switches
- Input: 32A 5p RED CEE with phase reverse
- Protection: 2x16A MCB (2ch MCB per output ch)

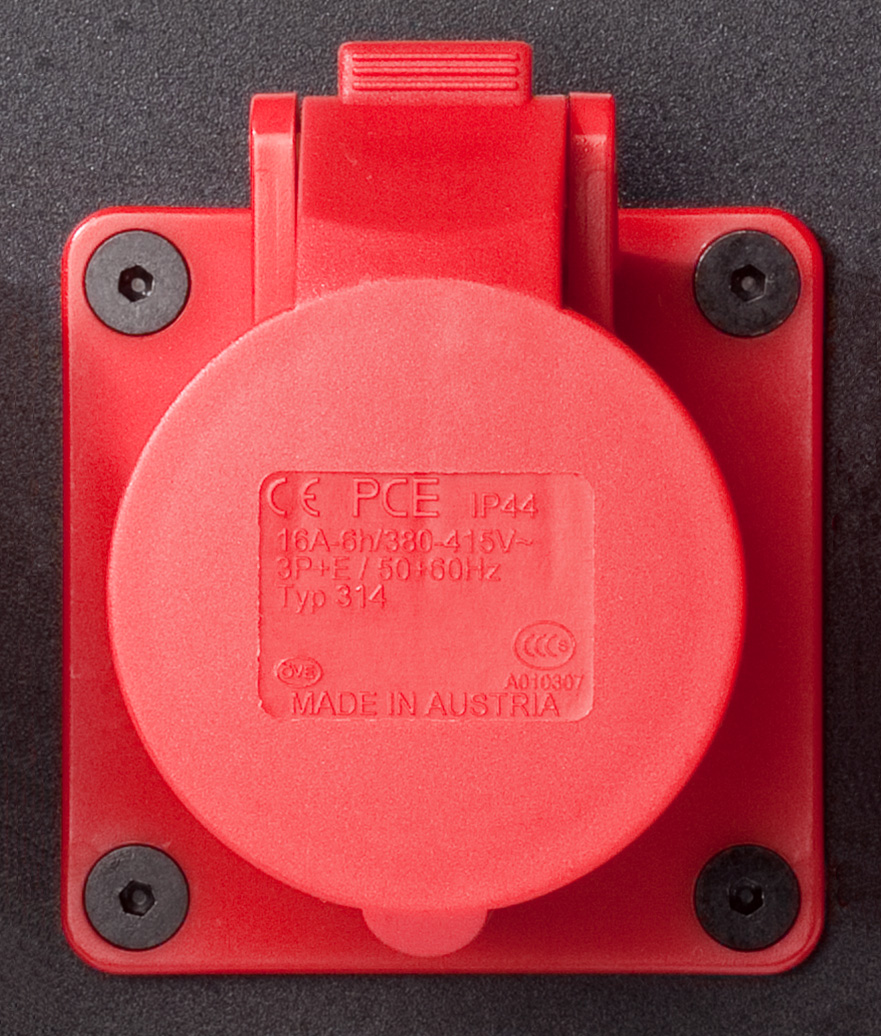

- Output: 4x CEE/16A 4p RED & YELLOW
- 4p Neutrik™ XLR in/out Analog Link & Remote Connection (NEEDS Remote Controller 970009)

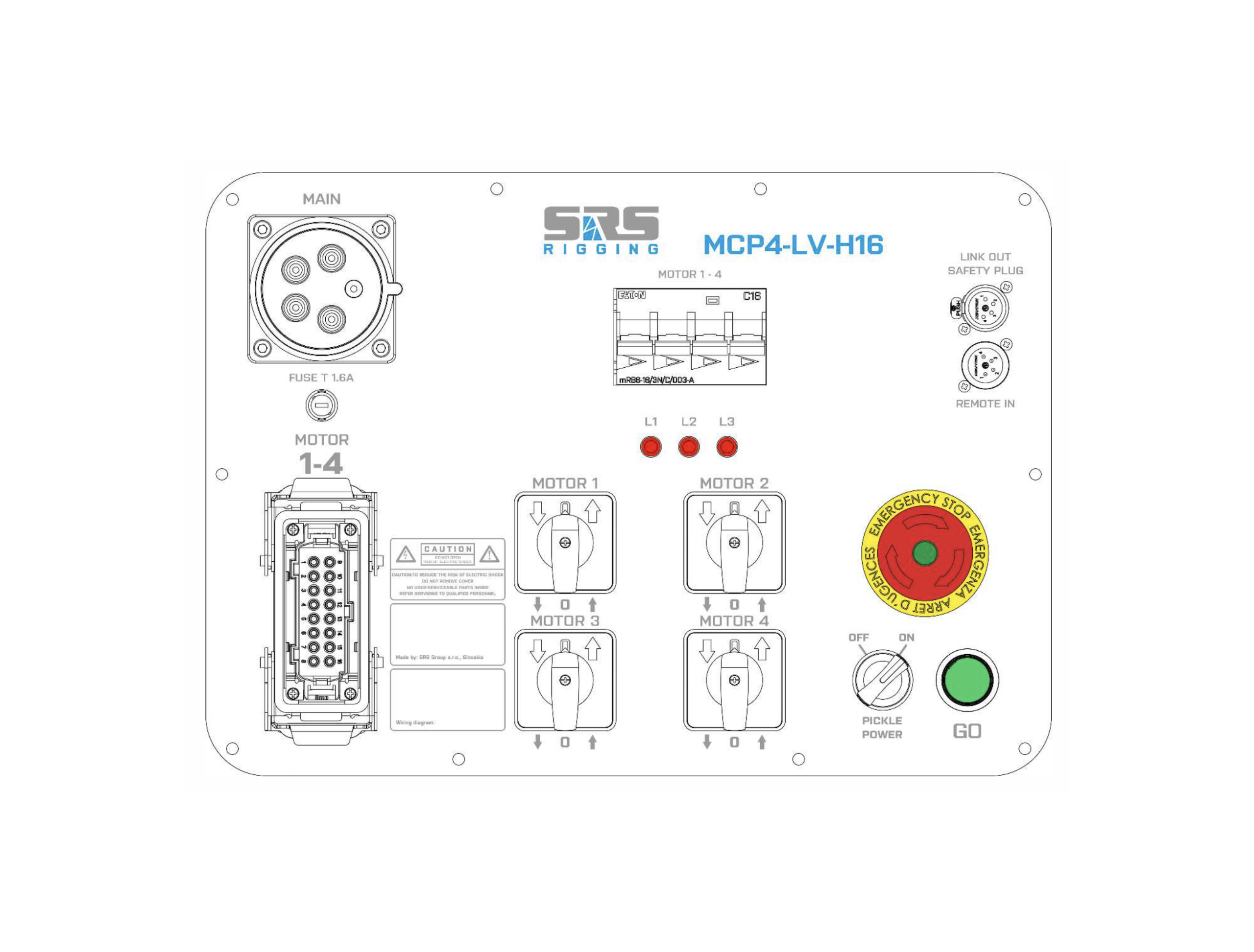

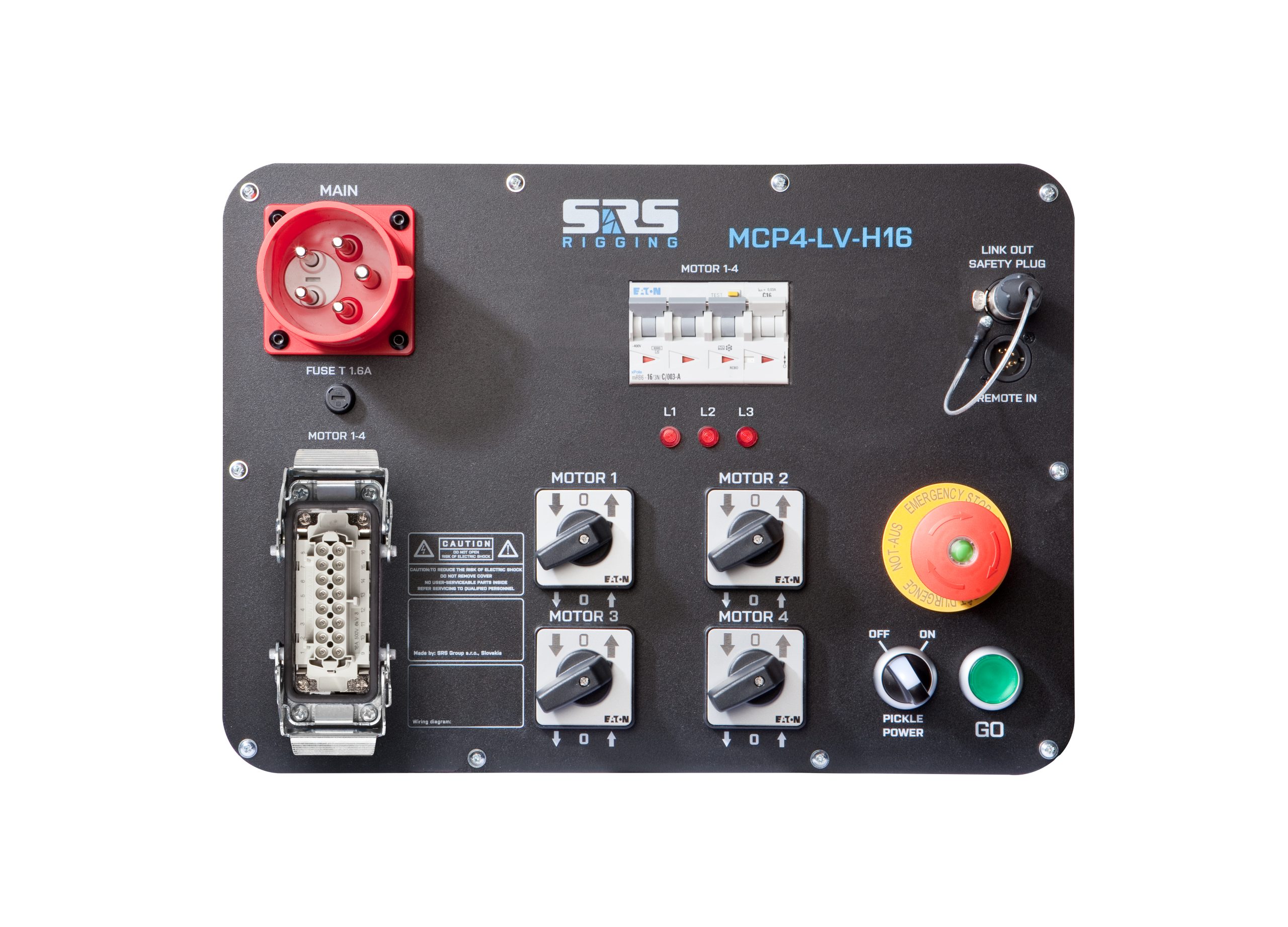

MCP4-LV-H16
- Dimensions: 340x425x170mm (Nanuk 930 Case)
- Weight: 9,2 kg
- Warranty: 2 years
- Hoist types: BGV D8, BGV D8+
- Manual Phase Check & Correction
- Max Channel Load 0.9kW
- Individual Channel Direction Selection via Cam Switches
- Input: 400V 50Hz (3-phase + Neutral + Ground)
- Protection: 1x16A MCB + RCD (1ch MCB per output 4ch)

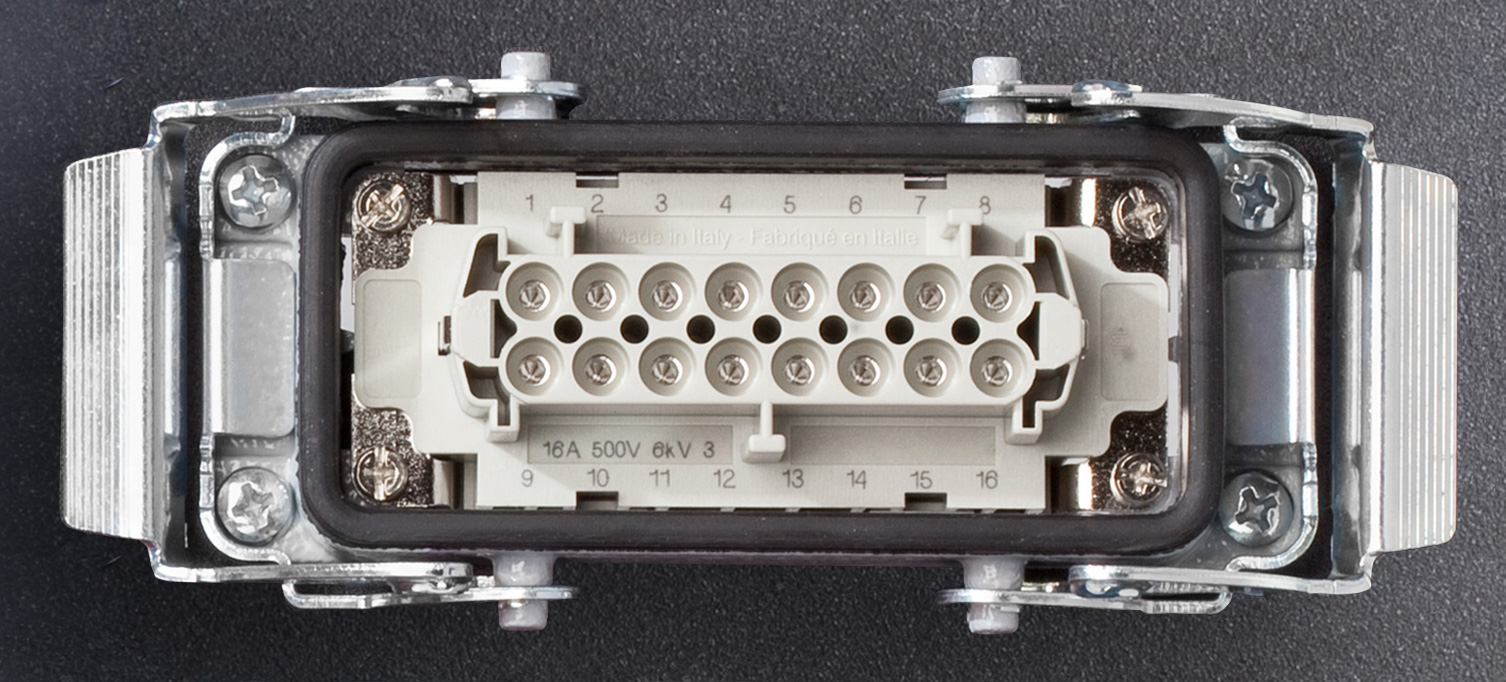

- Output: 1x Harting 16p (PIN CONFIGURATION TO BE CONFIRMED ON ORDER)
- 4p Neutrik™ XLR in/out Analog Link & Remote Connection

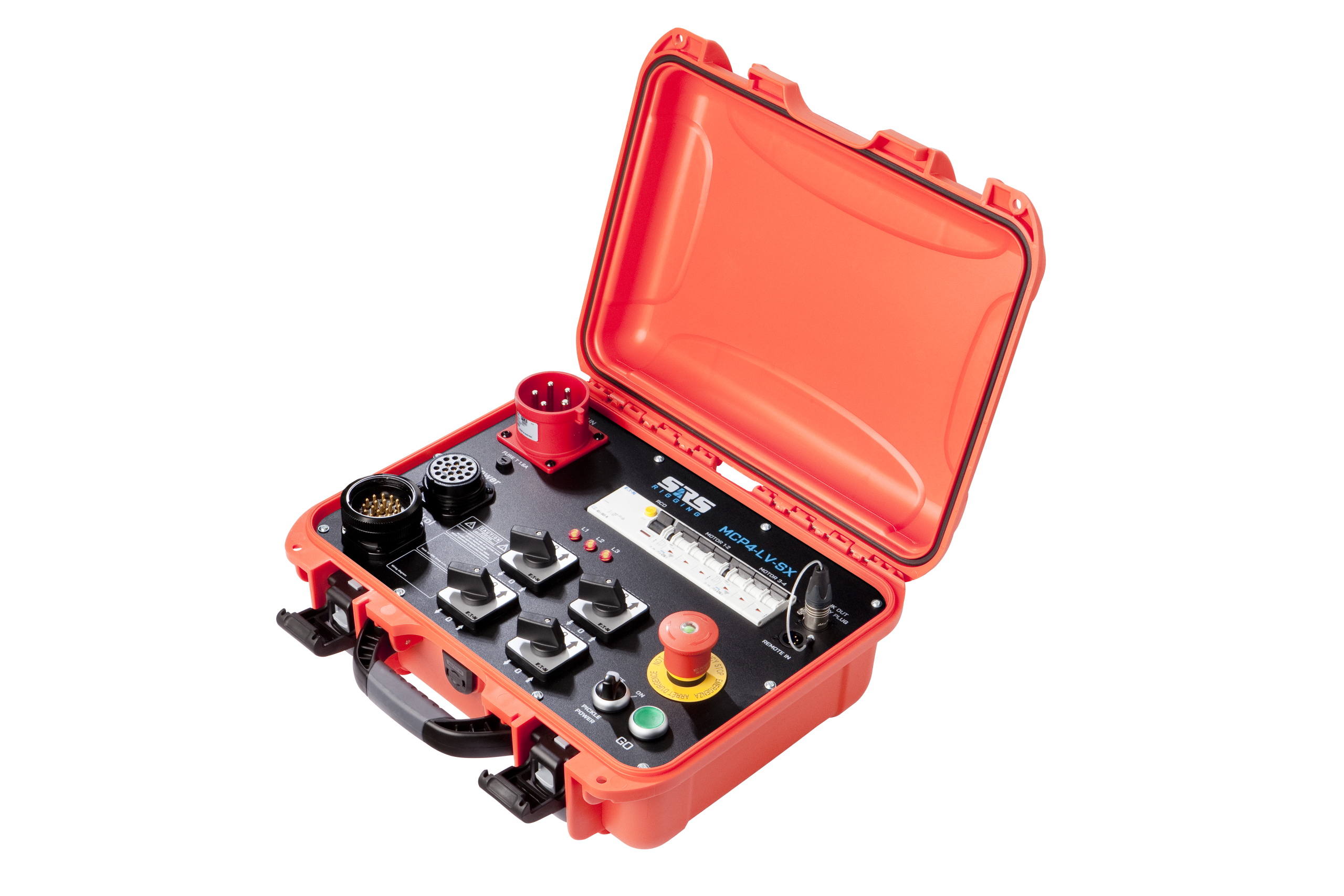

MCP4-LV-SX19-OR
- ORANGE Suitcase Motor Controller
- Dimensions: 340x425x170mm (Nanuk Case)
- Weight: 9,2 kg
- Warranty: 2 years
- Hoist types: BGV D8, BGV D8+
- Manual Phase Check & Correction
- Max Channel Load 0.9kW
- Individual Channel Direction Selection via Cam Switches
- 400V 50Hz (3-phase + Neutral + Ground)
- Input: 32A 5p RED CEE with phase reverse
- Protection: 1x16A MCB + RCD (1ch MCB per output 4 ch)

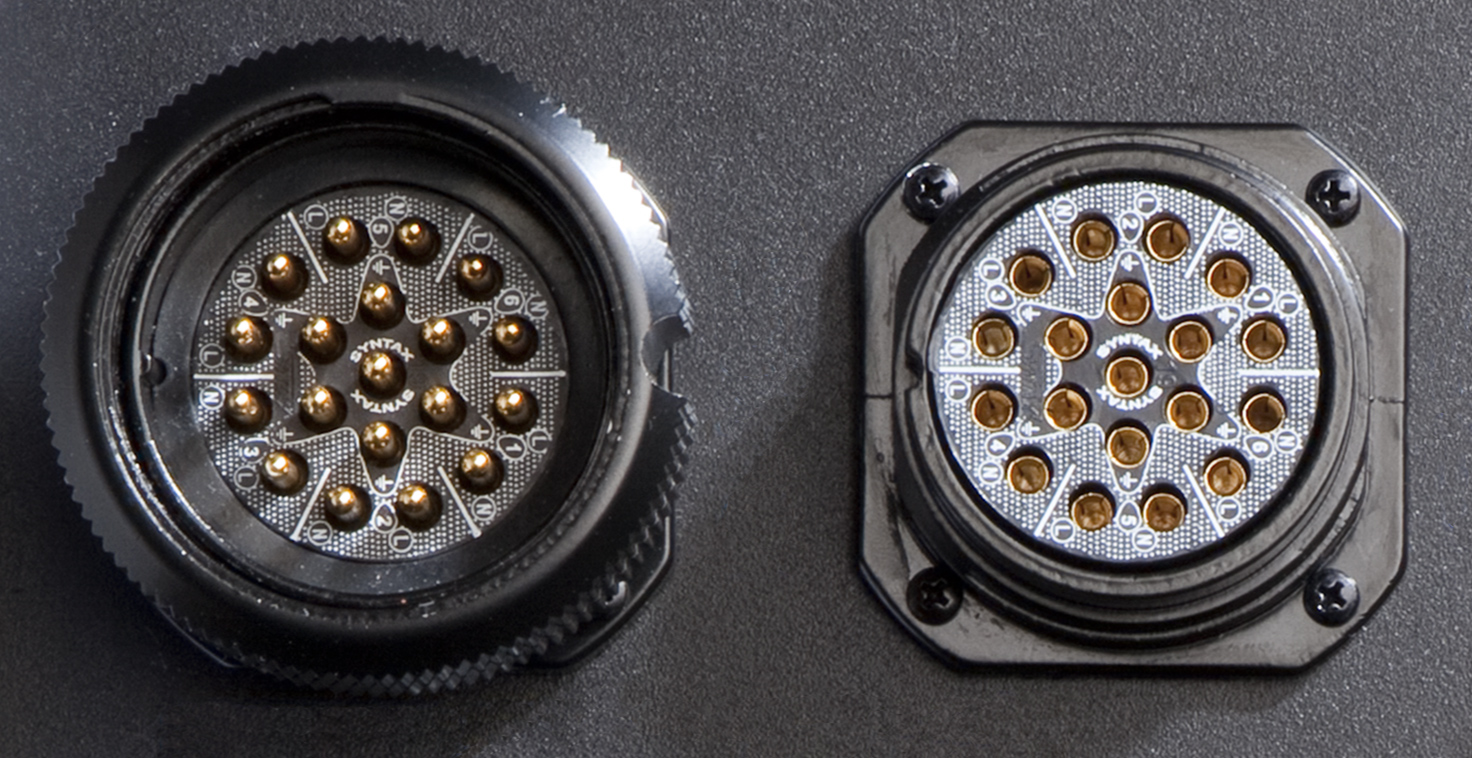

- Output: Socapex 419 19 p M/F (PIN CONFIGURATION TO BE CONFIRMED ON ORDER)
- 4p Neutrik™ XLR in/out Analog Link & Remote Connection
Article codes
806-231310
4ch MCP LV Analog Case Controller. 4 x Cee 16a 4p Red/Yellow Link
806-231311
4ch MCP LV Analog Case Controller. 1 x Harting 16F Link
806-231312
4ch MCP LV Analog Case ORANGE Controller. 2 x Socapex 19p M/F Link
