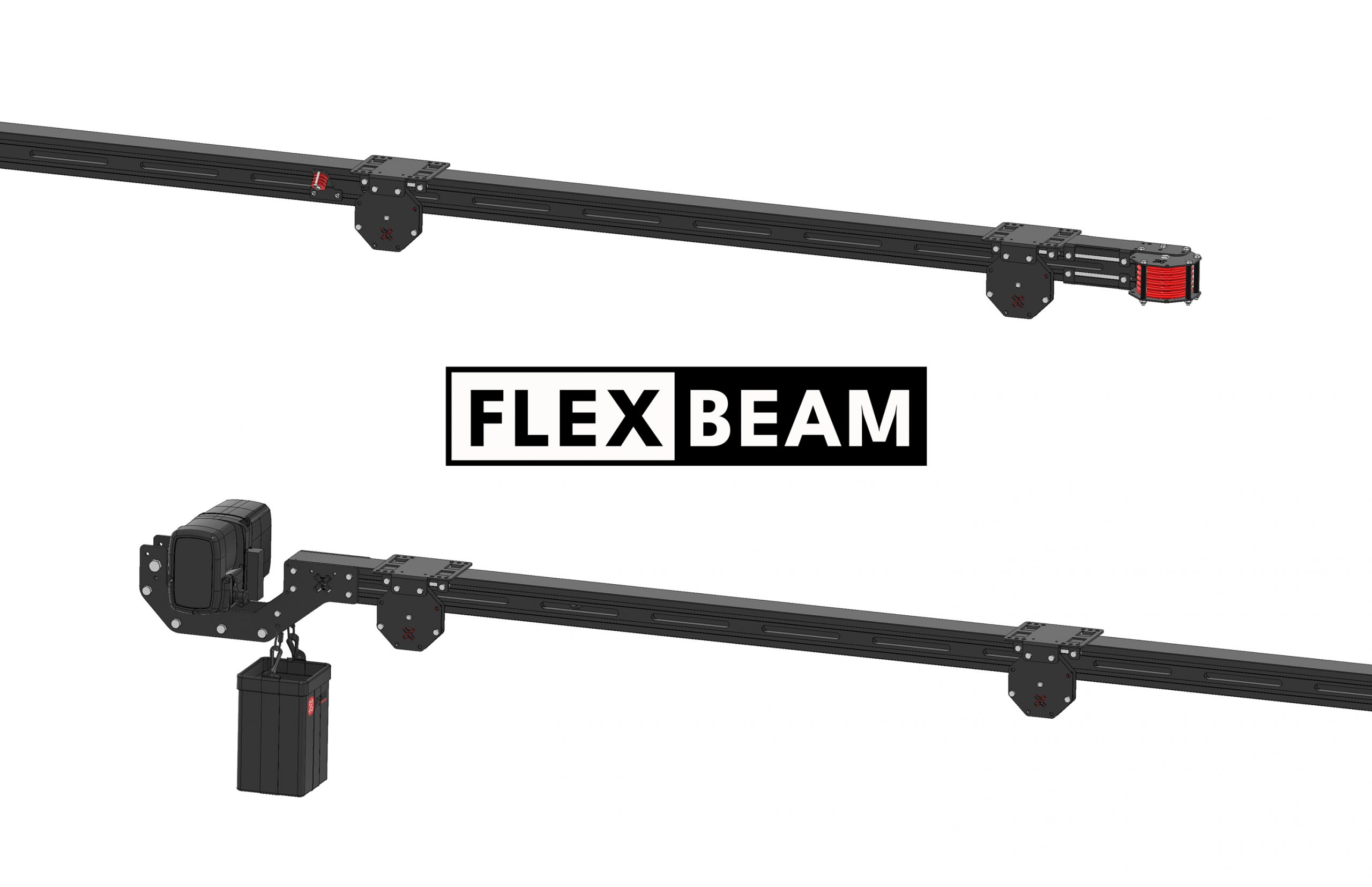

FlexBeam – Modular Lifting Solution

Our innovative modular system suitable for small to medium-sized projects

Designed to suit renovations without reinforcing the roof beams, as the profile takes out all the side forces. The system is delivered in sections and can easily be lifted as such for quick installation. Wires run in a sound-damped plastic track and provide minimal hanging wires. Being built within and around a 100x100mm aluminum profile, the solution requires minimal space. FlexBeam can be ordered in sections up to 6 meters long and joined together during installation for custom length.

Additional information

Details

Features

• Aluminium profile W: 100mm x H: 100mm
• Material: EN AW 6063 – T6
• Available in sections up to 6 m
• Self-weight: 6,2 kg/m + accessories
• Up to 1000 kg lifting capacity
• Up to 12 m/min lifting speed
• The total length of the beam corresponds to its maximum lifting height
• Matte black powder-coated (custom colors available on request)
• Inspection slots on both sides with sidetracks for cabling
• For up to 5 pieces of 6mm wires
• All parts are integrated within and around the profile
• Can be used with all types of chain hoists

Configuration

Standard configuration

• Integrated fixing clamps for 100-140 mm H-beam
• Motor bracket adjusted for your chain hoist

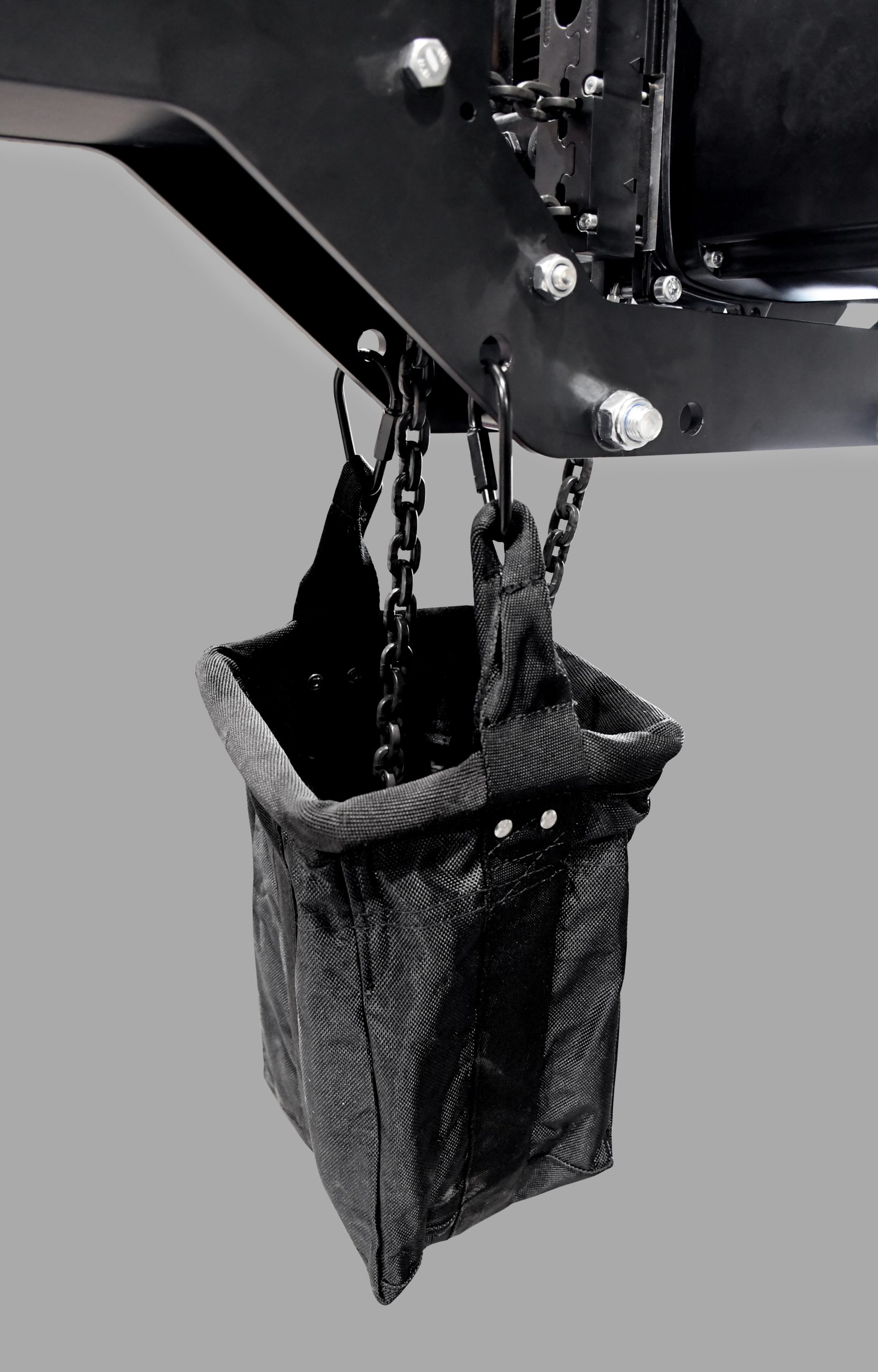

• Rope collector adjusted for your chain hoist
• 5 mm steelropes (6mm on 500214806)

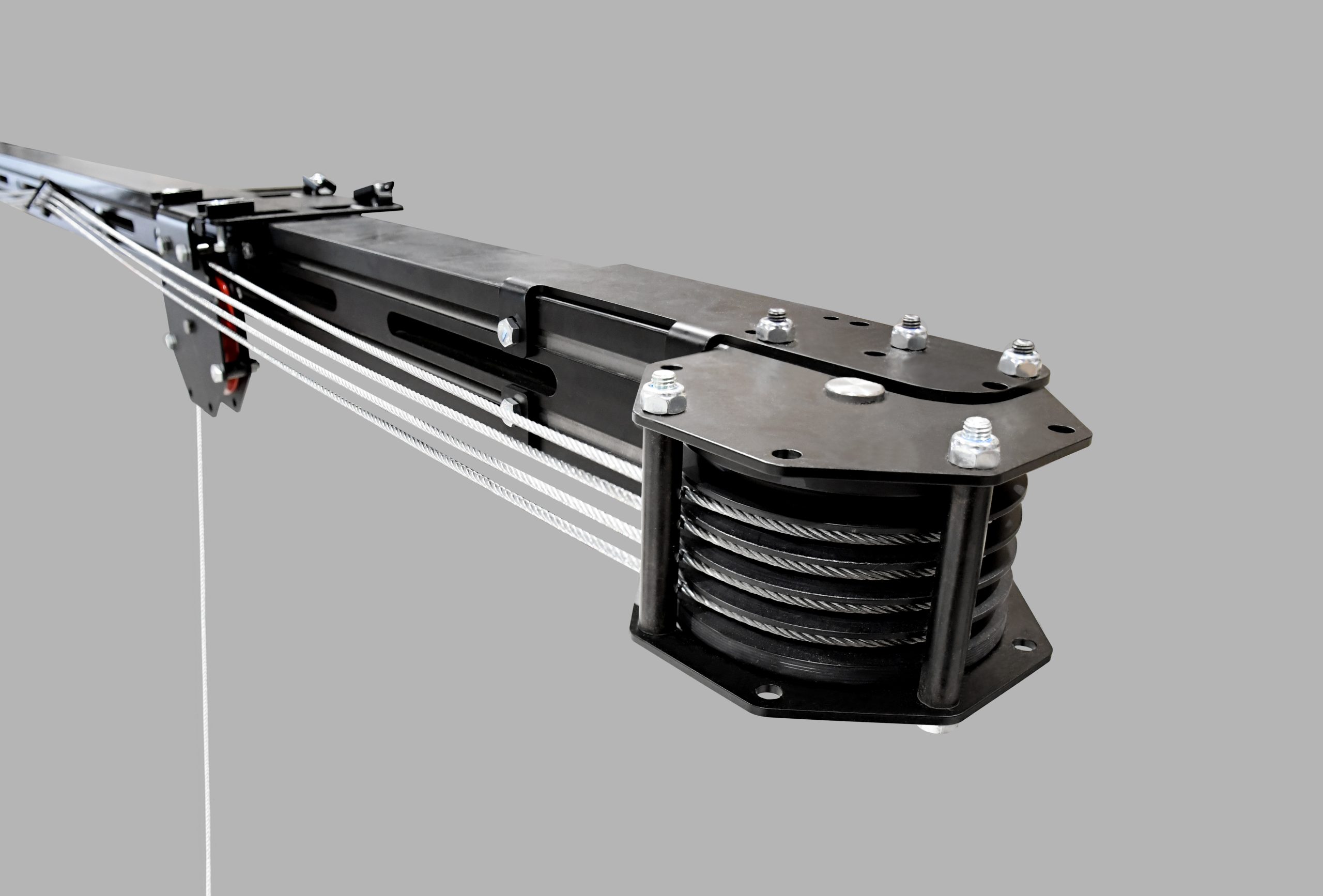

• Ball bearing pulleys in red nylon Ø125mm
• Delivered w/ powder coated black steel pipe 50x3mm

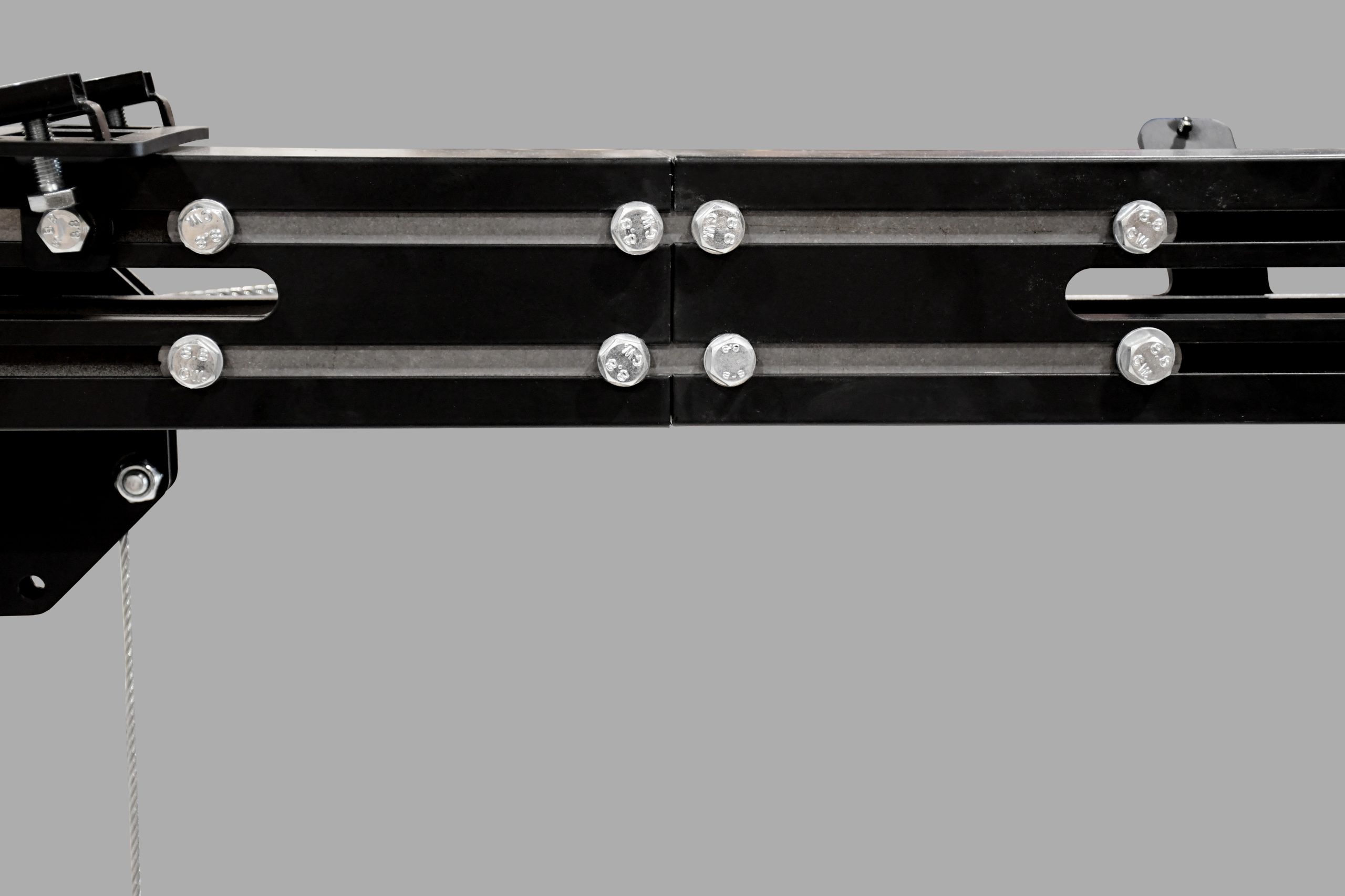

• Complete w/ joint connectors

Optional configuration

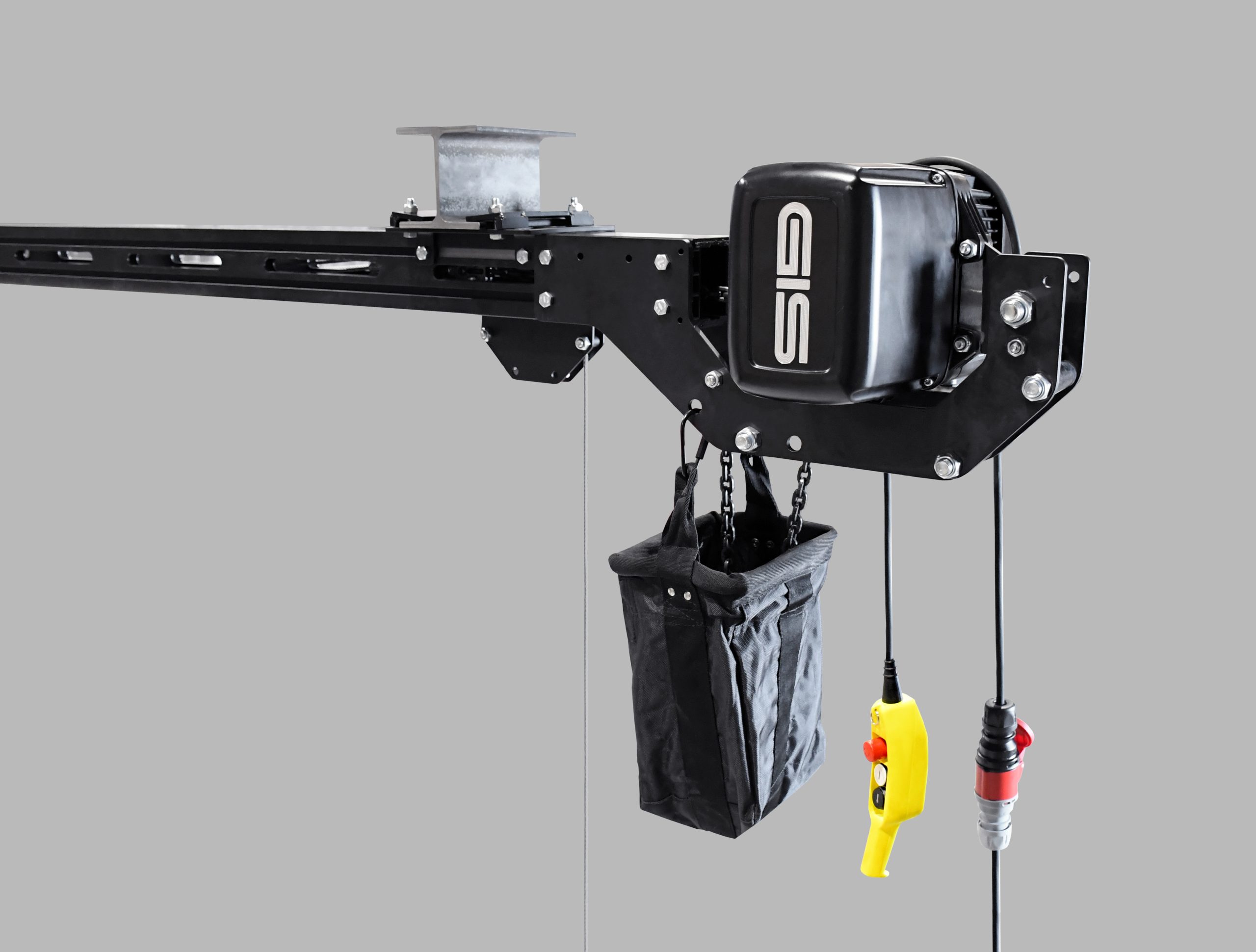

• Equipped w/ GIS quality chain hoist
• Slack rope detectors integrated with pulleys
• Slack chain detector for lifting chain
• Load pin on return pulley
• For fixing to H-beam 140-200mm (or custom fixing)
• Equip with up to 4 pairs of wires (double drop config)
• Black steel ropes on request
• Moveable w/ beam trolleys

Article codes and operation statistics

Standard = Matte Black, “-W” = White, “-S” = Silver, “-CR” = Custom
