Practical, compact and elegant cable management

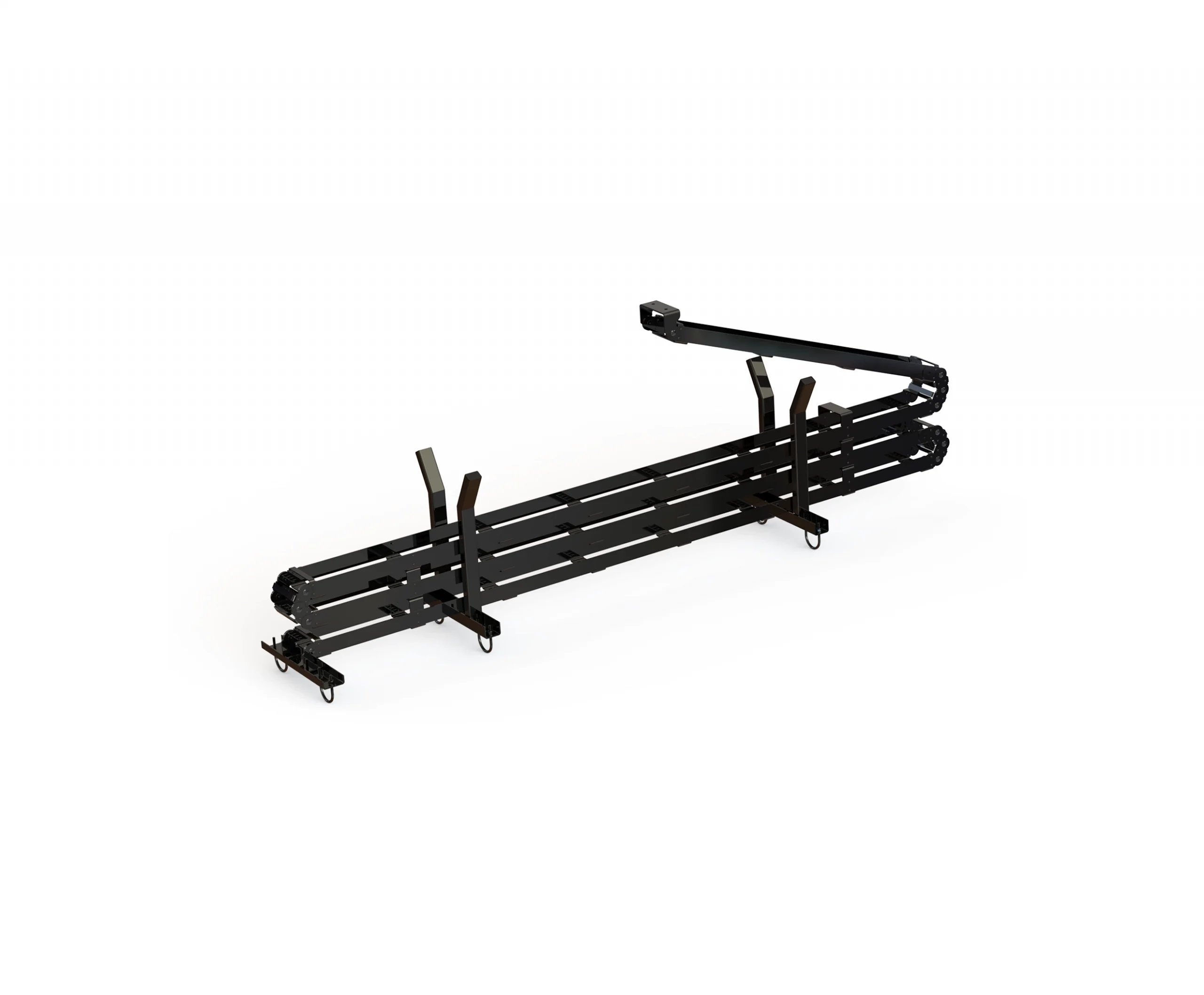

Our reliable and sturdy cable guides with folding ladder design are engineered to meet standards for cable bending and ventilation. The compact design allows you to guide the power and signal cables while the hinges ensure the cables are gently bent while maintaining a minimum diameter.

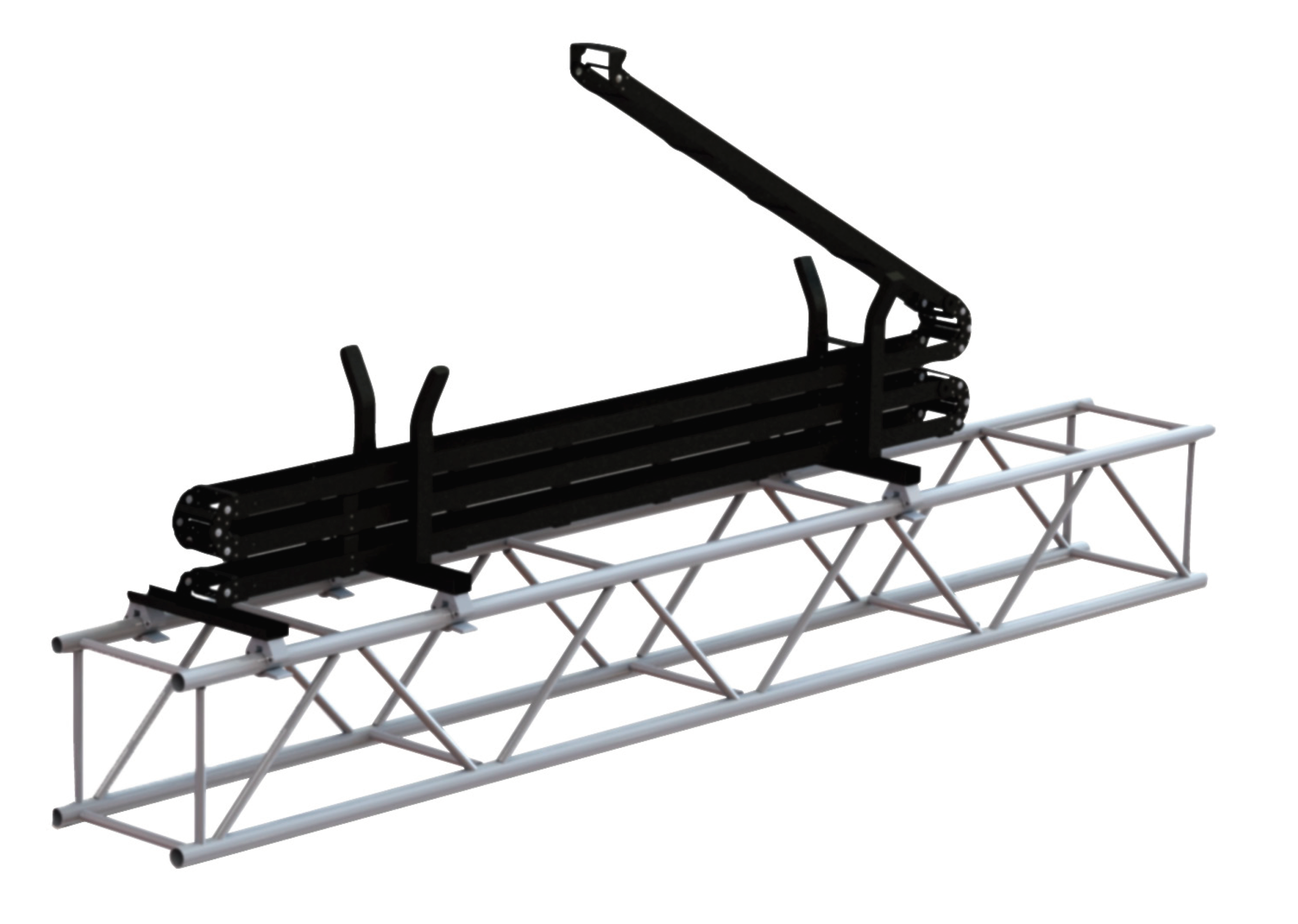

The solution can be mounted on single, ladder, triangle and box truss.
Additional information
Features
- Maximum travel height: 14m
- Available with 1m, 2m or 3m sections

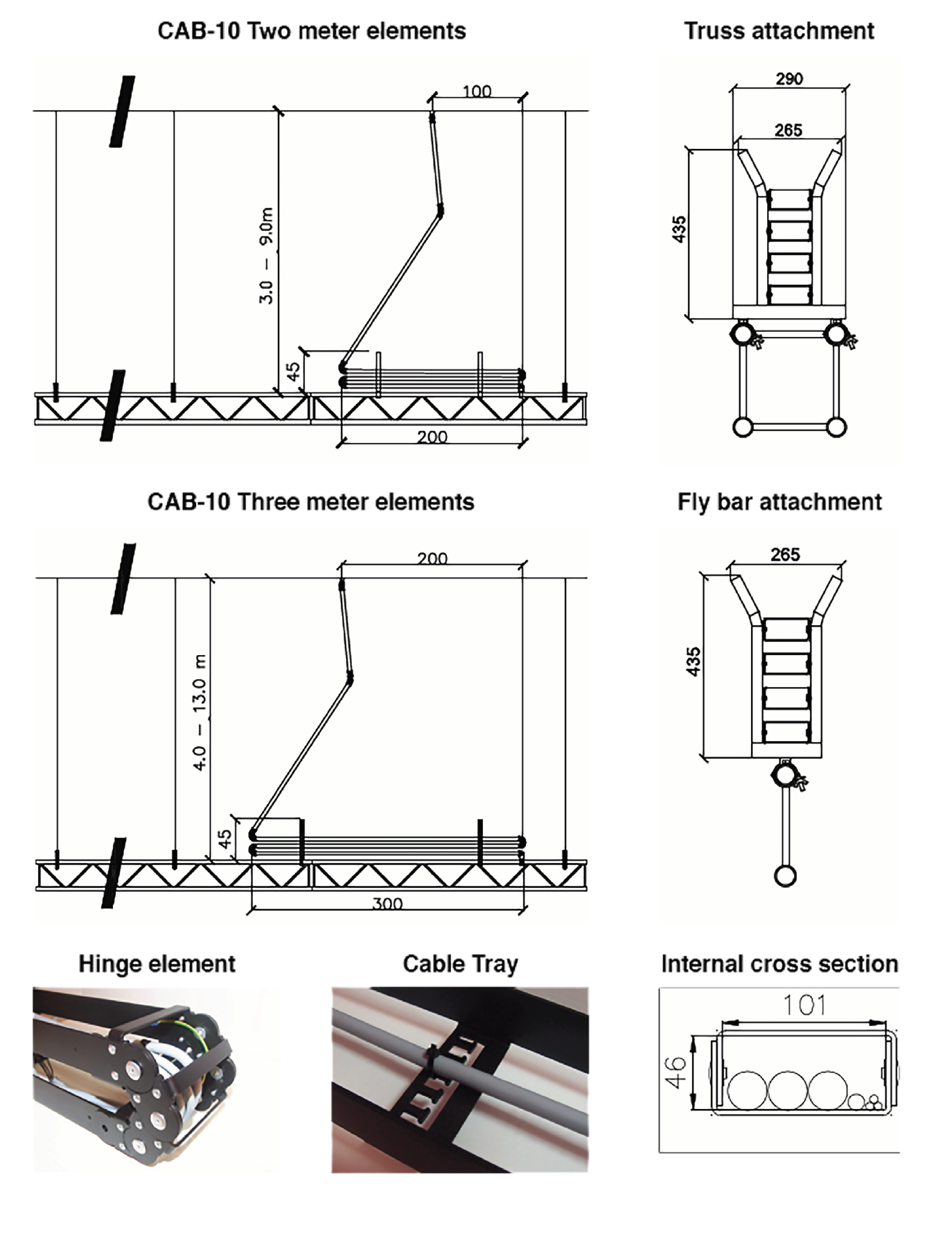

- Cross section: 101x46mm
- Cable bend radius: 40mm
- For fixing to pipe or 30cm and 40cm truss
- Upper end fixing attachments for pipe, beam, truss or concrete
- Black powder-coated finish
- Rubber damping silencers for straight section contact points
- Cable fixing on straight sections with plastic ties
- Plastic inserts for hinges
Self-weight
- 5m: 10kg
- 7m: 18kg
- 9m: 23kg
- 10m: 25kg
- 13m: 32,5kg
- 14m: 35kg
- Cable weight: 10kg/m, up to 150 kg
Options
- Custom fixing solutions
- Custom length of straight elements
- Custom color
Configuration
Different configurations
- 5m (2+2+1m)
- 7m (2+2+2+1m)
- 7m (3+3+1m)
- 9m (2+2+2+2+1m)
- 10m (3+3+3+1m)
- 13m (3+3+3+3+1m)
- 14m (3+3+3+3+2m)
Article codes
803-271101
Cable guide CAB 10 – 5m (2+2+1m)
803-271102
Cable guide CAB 10 – 7m (2+2+2+1m)
803-271103
Cable guide CAB 10 – 9m (2+2+2+2+1m)
803-271104
Cable guide CAB 10 – 7m (3+3+1m)
803-271105
Cable guide CAB 10 – 10m (3+3+3+1m)
803-271106
Cable guide CAB 10 – 13m (3+3+3+3+1m)
803-271107
Cable guide CAB 10 – 14m (3+3+3+3+2m)
803-271108
Cable guide CAB 10 – 16m (3+3+3+3+3+1m)
