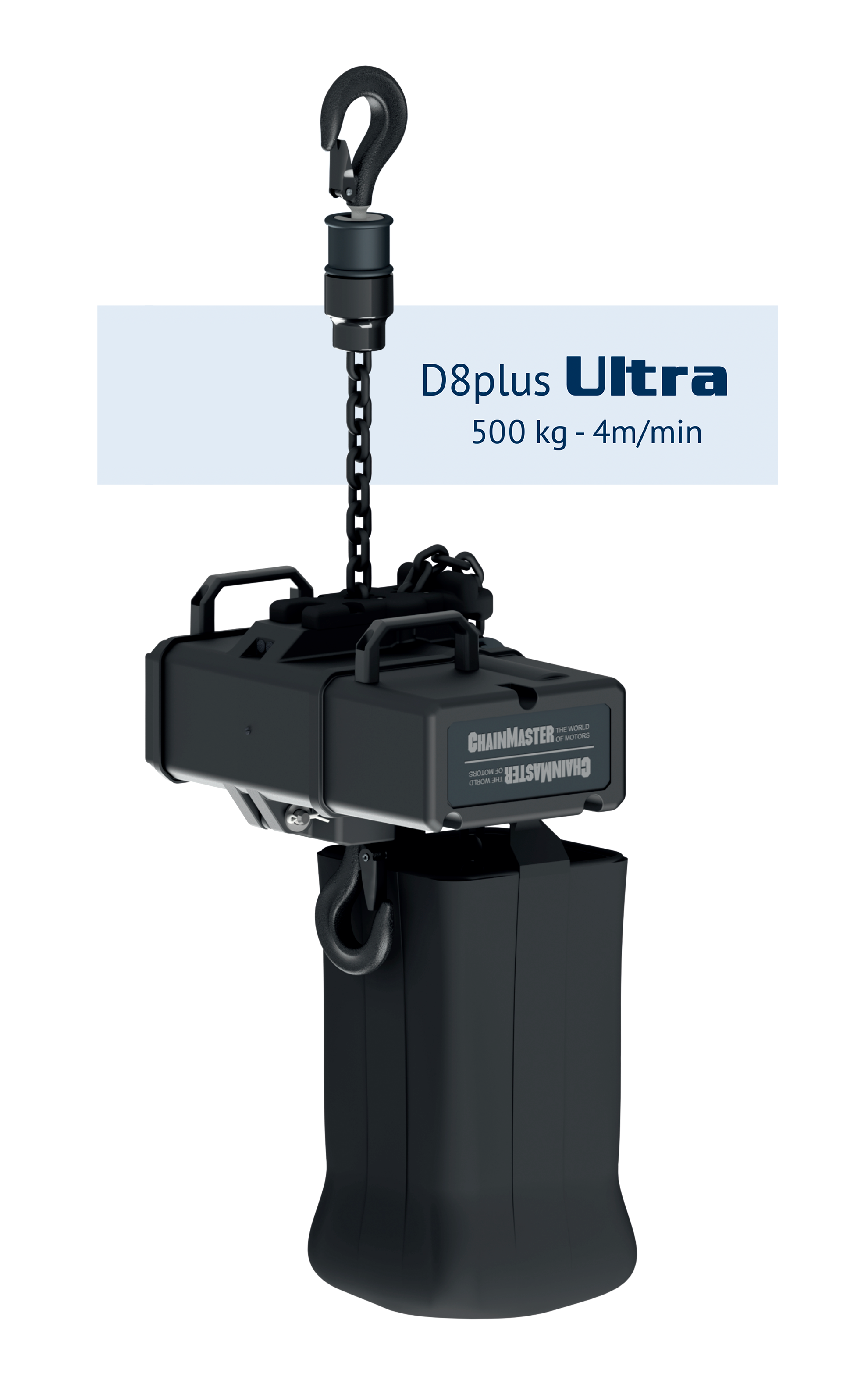

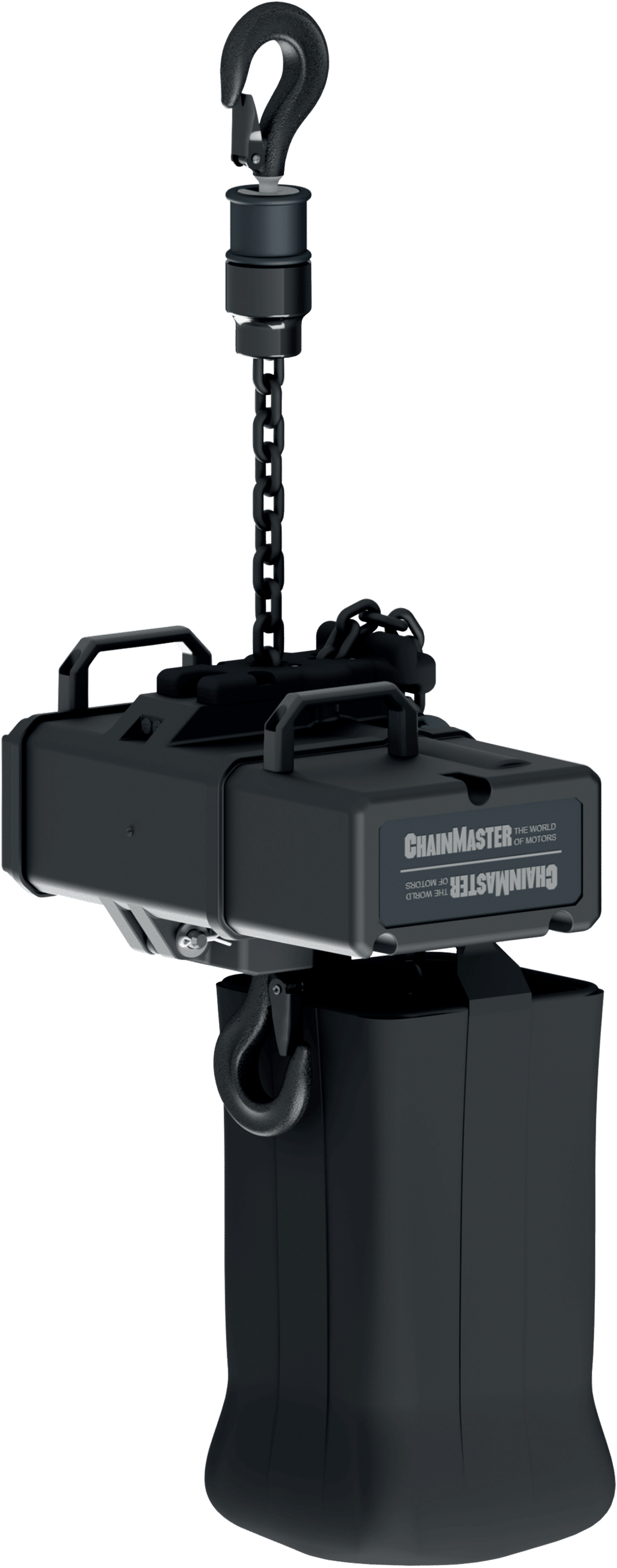

D8Plus Electric Chain Hoist for Rigging
Increased safety, flexibility and efficient rigging for complex loads are the main features of this D8Plus chain hoist. CHAINMASTER first presented the concept to the Berufsgenossenschaft (institution for statutory accident insurance and prevention in the event industry) many years ago, and in 2004 a working group run by VPLT, the association of event technology companies, published the industry code of practice SR2.0 based on our innovation. The incorporation of a second brake and C1-standard safety features into BGV D8 chain hoists resulted in a product that does without load additional securing. Sales show that the market clearly approves of the concept, not just in Germany but all over the world.
Our ‘ready to use’ package includes a pair of D8Plus Ultra 500 kg in a sturdy flight case equipped with 24m of lifting height (5.4x15mm chain), FlipBag chain bag, chain hook, and suspension plate.
Basic features
- For climbing- or standard suspension
- Direct control
- Light and compact housing
- Precise chain guide
- 5-pocket chain wheel
- Textile chain bag
- Double DC brakes
- Patented friction clutch
Additional information
- Completely enclosed IP55 aluminum cast housing
- Light and compact design with quiet operation
- Standard or climbing configuration
- 1-fall load hook
- 2 large plastic handles for easy handling
- 2 independent spring-loaded brakes with DC magnet coils
- Friction clutch to protect the drive
- Chain guide plate of polyamide
- Precise chain guide with a 5-pocket chain sprocket wheel
- Black paint finish RAL 9005 – semi-gloss (other colors on request)
- FlipBag – a reversible and durable chain bag made out of high-quality textile
- Operating coefficient load chain – 8 (according to SQP2 2018-10)
- 1m CEE-16/4 connection cable
Model type
SK030 / 76U
Length
350 mm
Width
258 mm
Weight
17 kg (body), 37 kg (with chain)
Safe working load
500 kg
Hoisting speed
4 m/s
Load chain
5,4×15 mm, matte black-grey, phospated, according to EN 818-7-DAT
Lifting height
24 m
FEM/ISO
1Bm/M3
No. of falls
1
Suspension type
Single-hole suspension eye for shackle
Brakes
Double DC brakes
Noise level
74 dBA / 1 m distance
Safety factor
8/1 (static)
Clutch
Patented “Hoffman safety clutch”
Coating
Environmentally friendly, water-based paint in “Jet Black” matte finish
Motor power
0,37 kW
Nominal voltage
3×400 V
Frequency
50 Hz
Protection class
IP55
Control
Direct control
Power cable
1m with 4-pol red CEE connector
- Other configurations are available on demand but not listed in this ‘ready to use’ package article. Feel free to contact sales@psrig.com for more information.
844-211015-P5
ChainMaster DC Rigging Lift D8+ 500kg Ultra. Ready to use package
