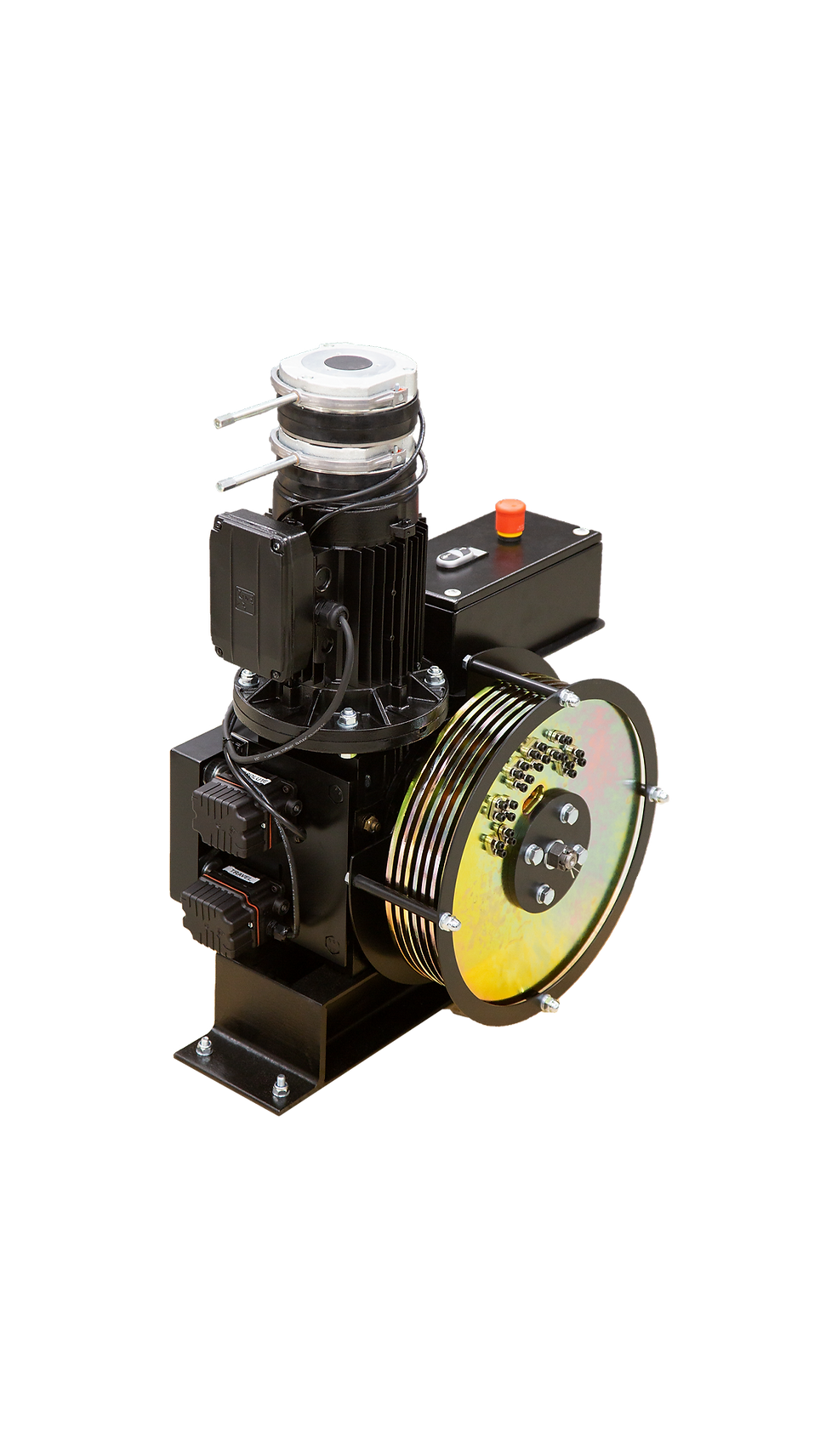

FlexPile electric winch 500kg SWL 3-6 lines, double brake, rope keeps

Powered pile wind winch

FlexPile is a staple of theatres and venues around Scandinavia. A multi-purpose winch unit, designed to provide a basic electric hoisting system for use with suspension bars and trussing applications. These units are a good solution for educational establishments, places of worship, studio spaces and smaller theatrical venues.

Additional information

Features

Lifting capacity 500kg
2,2 kW motor
0,15-0,3 m/s
Winches 3-6 lines per winch
Power 400V, 3 Ph, 50Hz
Double brake
12m of lift
Weight 150/173 kg
End of travel and ultimate limits as standard
CE certified

Options

Specify: 5 or 6 mm wire
Specify: Type of electrical box
Specify: Rope keeps
Specify: Roof, floor or wall mounting.

Article codes

803-212141

FlexPile electric winch 500kg SWL 3 lines, double brake, rope keeps

803-212142

FlexPile electric winch 500kg SWL 4 lines, double brake, rope keeps

803-212143

FlexPile electric winch 500kg SWL 5 lines, double brake, rope keeps

803-212144

FlexPile electric winch 500kg SWL 6 lines, double brake, rope keeps
