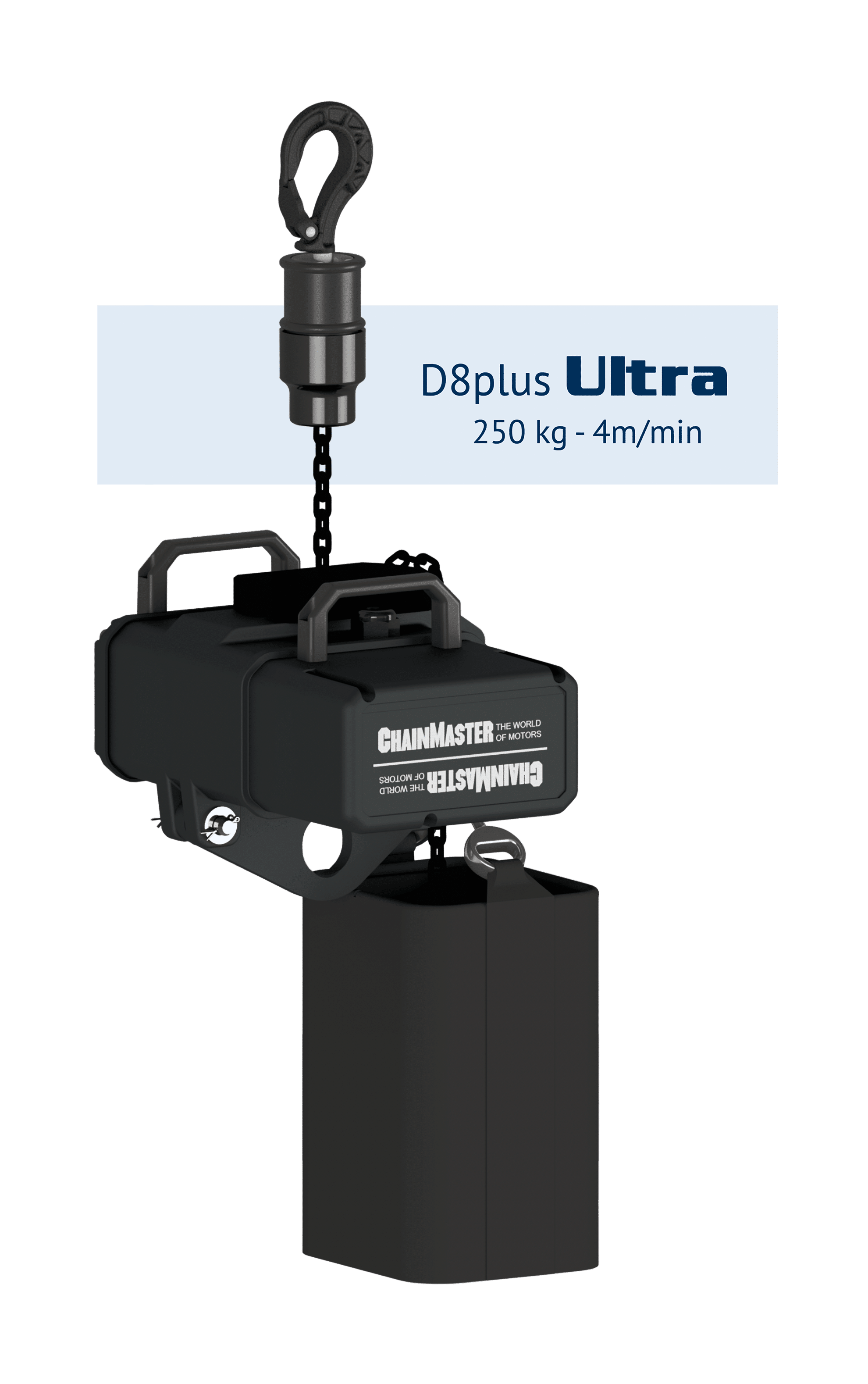

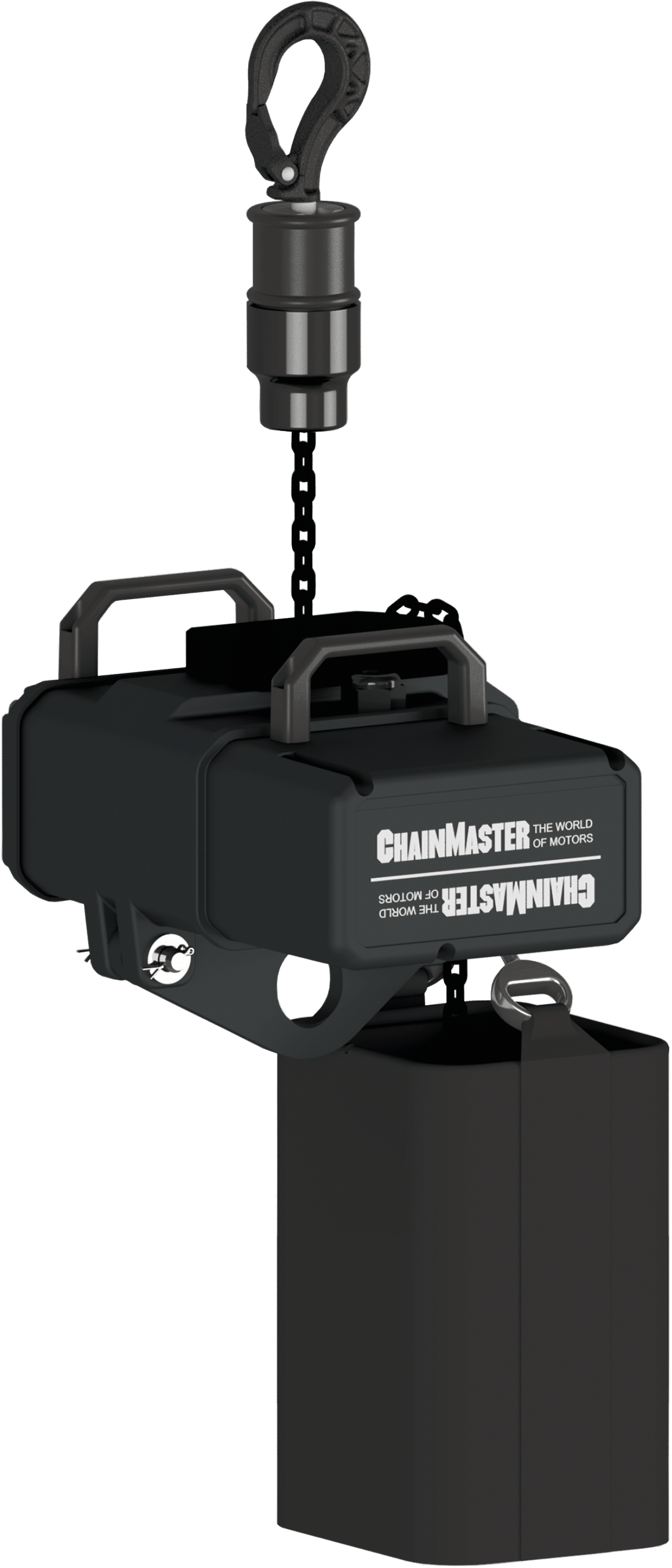

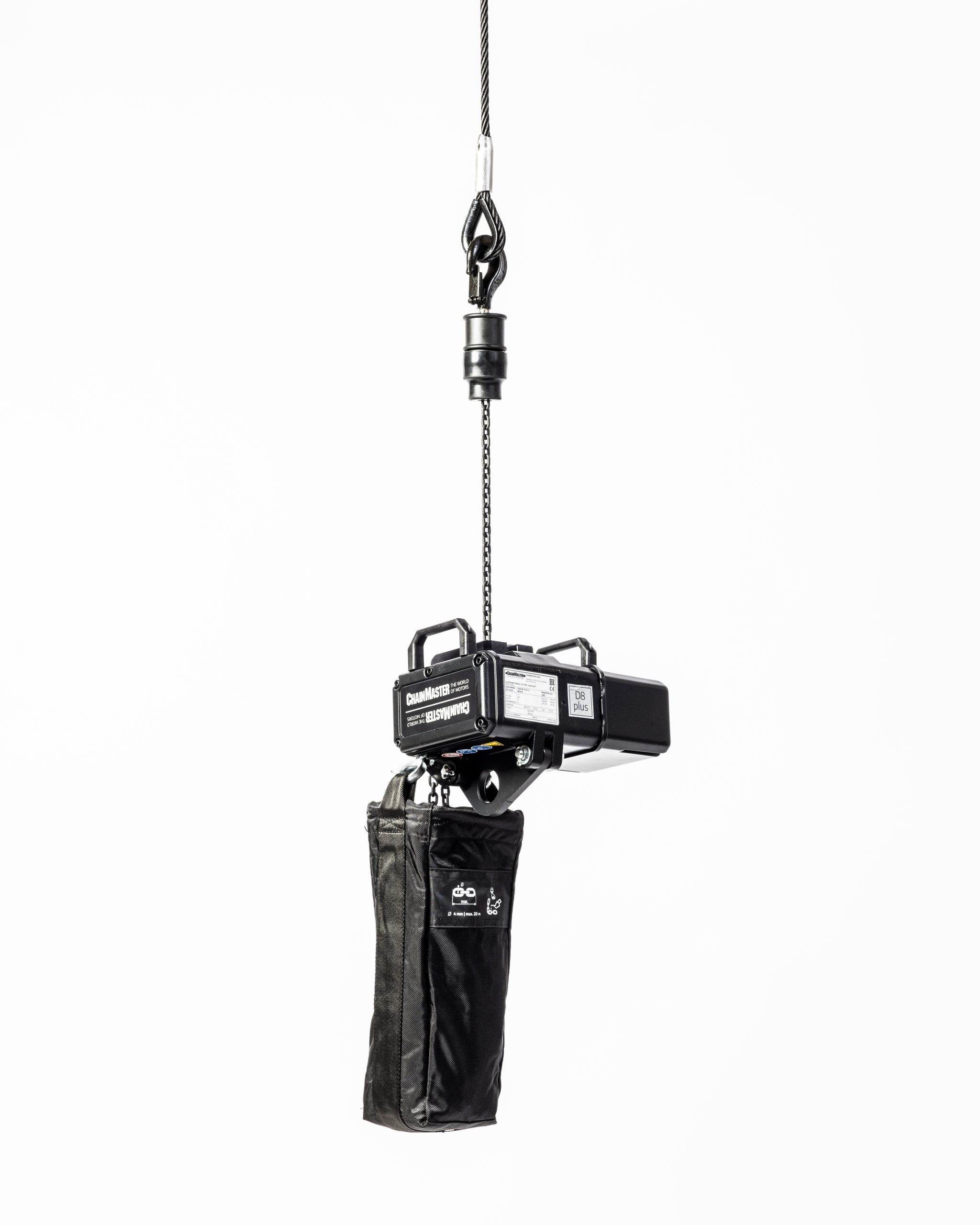

D8Plus Electric Chain Hoist for Rigging
Increased safety, flexibility and efficient rigging for complex loads are the main features of this D8Plus chain hoist. CHAINMASTER first presented the concept to the Berufsgenossenschaft (Institution for Statutory Accident Insurance and Prevention in the Event Industry) many years ago, and in 2004 a working group run by VPLT, the Association of Event Technology Companies, published the industry code of practice SR2.0 based on CHAINMASTER’s innovation. The incorporation of a second brake and C1-standard safety features into BGV D8 chain hoists resulted in a product that does without additional load securing. Sales show that the market clearly approves of the concept, not just in Germany and Europe, but all over the world.

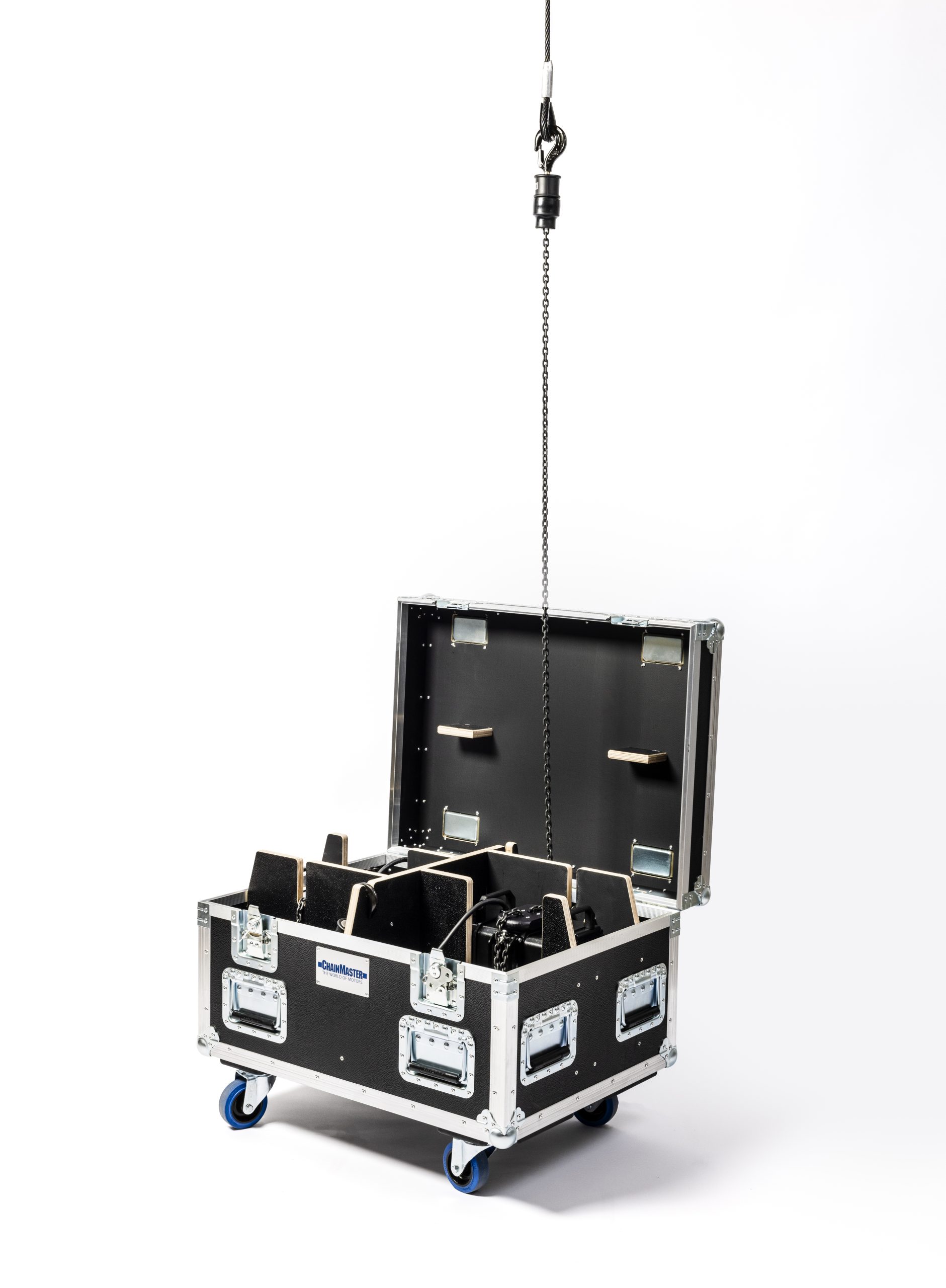

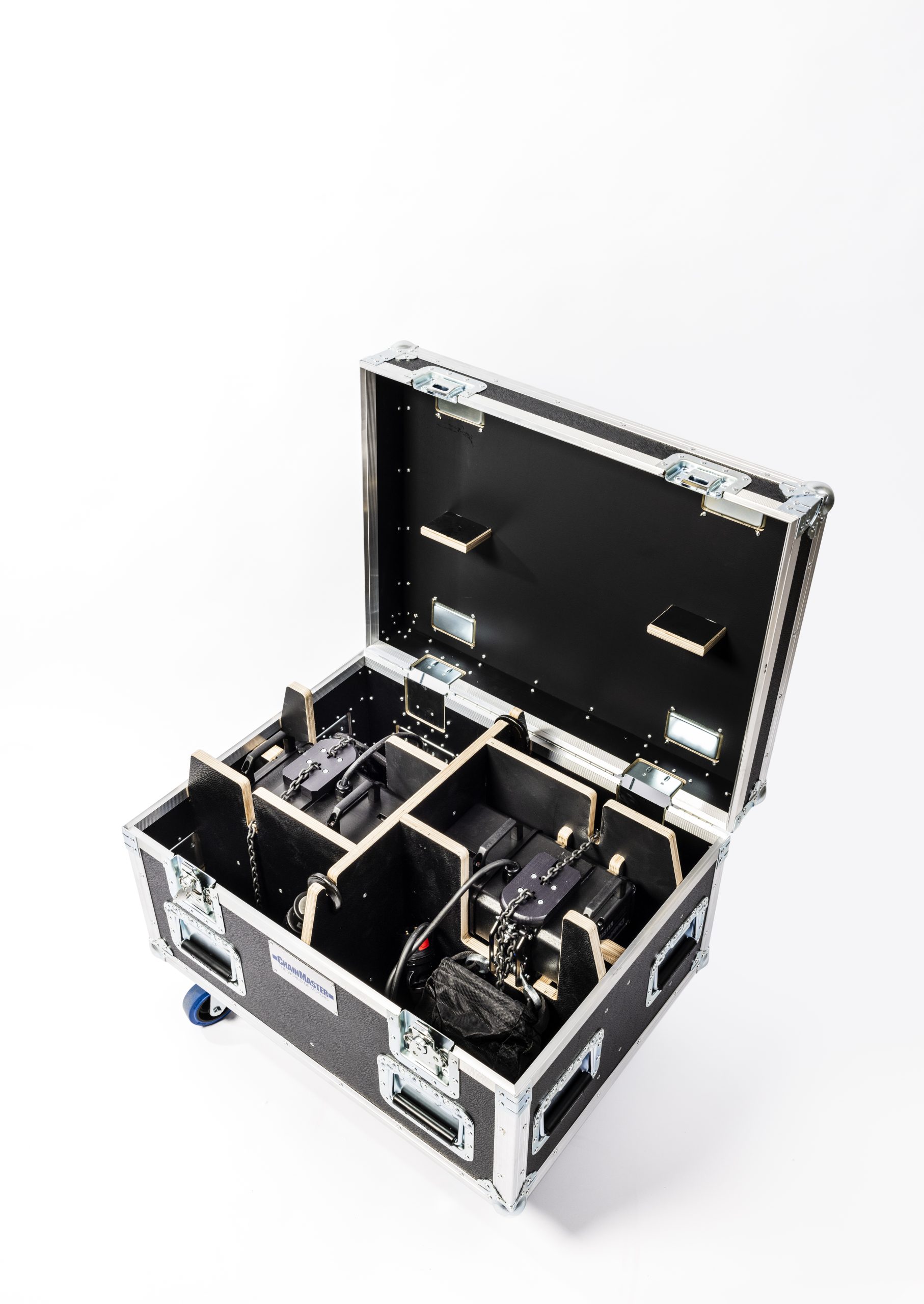

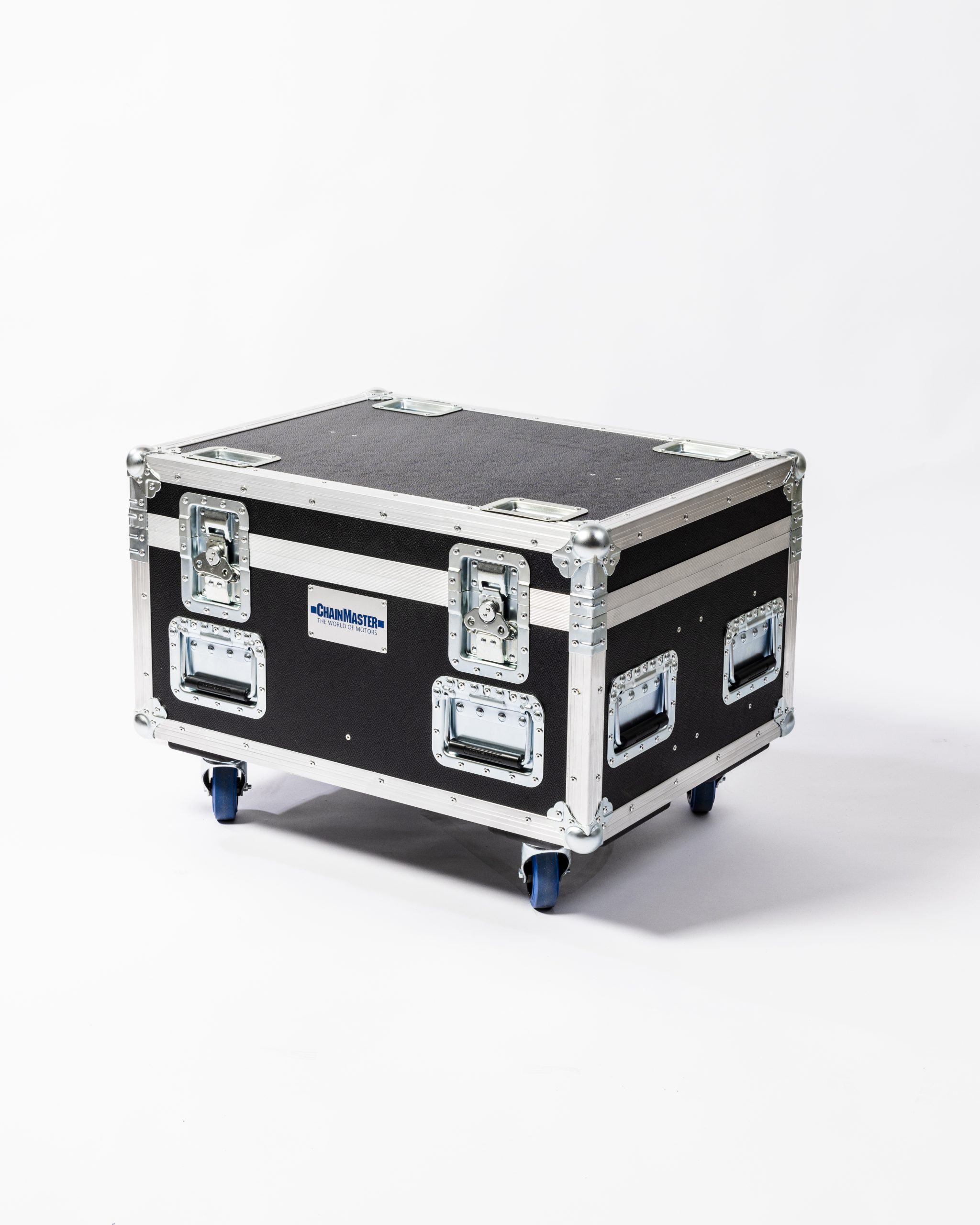

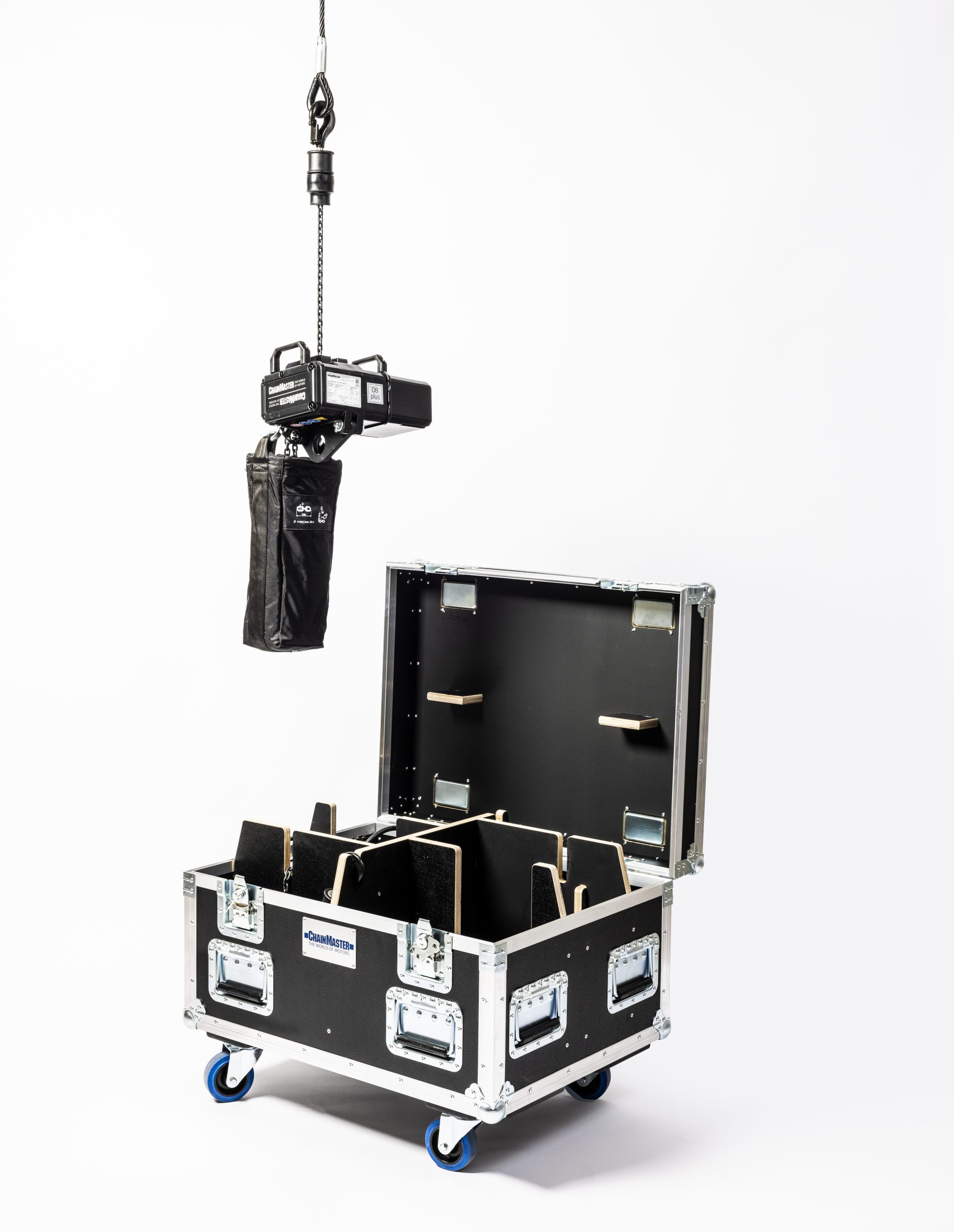

PSRIG:s “ready-to-use” package includes a pair of D8Plus Ultra 250 kg hoists housed in a robust double flight case. The package is customized with the customers preferred chain, FlipBag chain bag, chain hook, and suspension plate.
Basic features
- For climbing- or standard suspension
- Direct control
- Light and compact housing
- Precise chain guide
- 5-pocket chain wheel
- Textile chain bag
- Double DC brakes
- Patented friction clutch
Additional information
- Completely enclosed IP55 aluminum cast housing
- Light and compact design with quiet operation
- Standard or climbing configuration
- 1-fall load hook
- 2 large plastic handles for easy handling
- 2 independent spring-loaded brakes with DC magnet coils
- Friction clutch to protect the drive
- Chain guide plate of polyamide
- Precise chain guide with a 5-pocket chain sprocket wheel
- Black paint finish RAL 9005 – semi-gloss (other colors on request)
- FlipBag – a reversible and durable chain bag made out of high-quality textile
- Operating coefficient load chain – 8 (according to SQP2 2018-10)
- 1m CEE-16/4 connection cable
Model type
SB1.1 / 81U
Length
308 mm
Width
219 mm
Weight
10,2 kg (body), 20 kg (with chain)
Safe working load
250 kg
Hoisting speed
4 m/s
Load chain
4×12 mm, matte black-grey, phospated, according to EN 818-7-DAT
Lifting height
18 m
FEM/ISO
1Bm/M3
No. of falls
1
Suspension type
Single-hole suspension eye for shackle
Brakes
Double DC brakes
Noise level
68 dBA / 1 m distance
Safety factor
8/1 (static)
Clutch
Patented “Hoffman safety clutch”
Coating
Environmentally friendly, water-based paint in “Jet Black” matte finish
Motor power
0,18 kW
Nominal voltage
3×400 V
Frequency
50 Hz
Protection class
IP55
Control
Direct control
Power cable
1m with 4-pol red CEE connector
- Other configurations are available on demand but not listed in this ‘ready to use’ package article. Feel free to contact sales@psrig.com for more information.
844-211003-P5
ChainMaster DC Rigging Lift D8+ 250kg Ultra. Semi-ready to use in flight case. Set of 2psc
844-211003-P6
ChainMaster DC Rigging Lift D8+ 250kg Ultra. Semi-ready to use (in cardboard box)
Type of chain needs to be specified at the time of ordering:
844-213000
ChainMaster Chain Kit 250kg Ultra. Price per meter chain (4x12mm, black/grey, phosphates)
844-213001
ChainMaster Chain Kit 250kg Ultra. 4/13 FlipBag with 12,5m chain (4x12mm, black/grey, phosphates)
844-213002
ChainMaster Chain Kit 250kg Ultra. 4/20 FlipBag with 18,75m chain (4x12mm, black/grey, phosphates)
844-213003
ChainMaster Chain Kit 250kg Ultra. 4/30 FlipBag with 25m chain (4x12mm, black/grey, phosphates)
When buying chain per meter the following chain bags are available:
844-214000
ChainMaster FlipBag 250kg Ultra. Up to 13m of chain
844-214001
ChainMaster FlipBag 250kg Ultra. Up to 20m of chain
844-214002
ChainMaster FlipBag 250kg Ultra. Up to 30m of chain
844-214003
ChainMaster FlipBag 250kg Ultra. Up to 40m of chain
844-214004
ChainMaster FlipBag 250kg Ultra. Up to 50m of chain
844-214005
ChainMaster FlipBag 250kg Ultra. Up to 80m of chain
