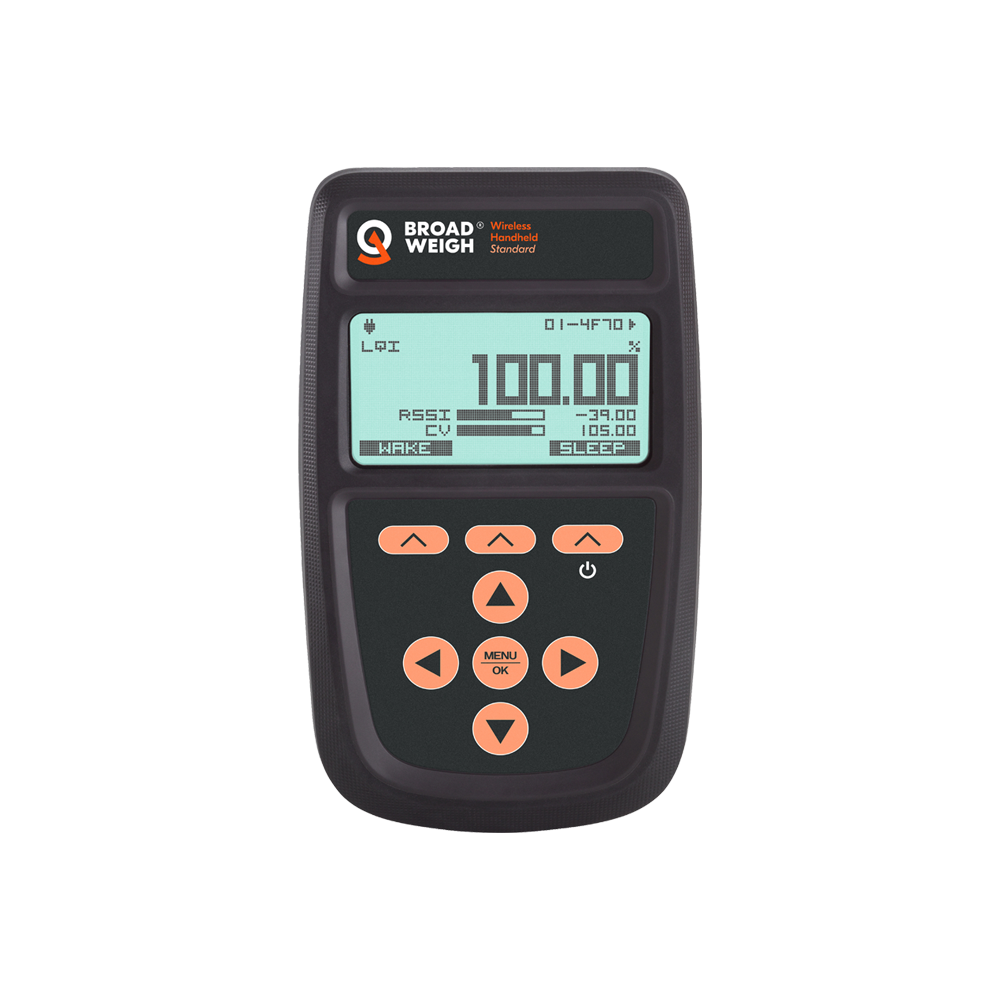

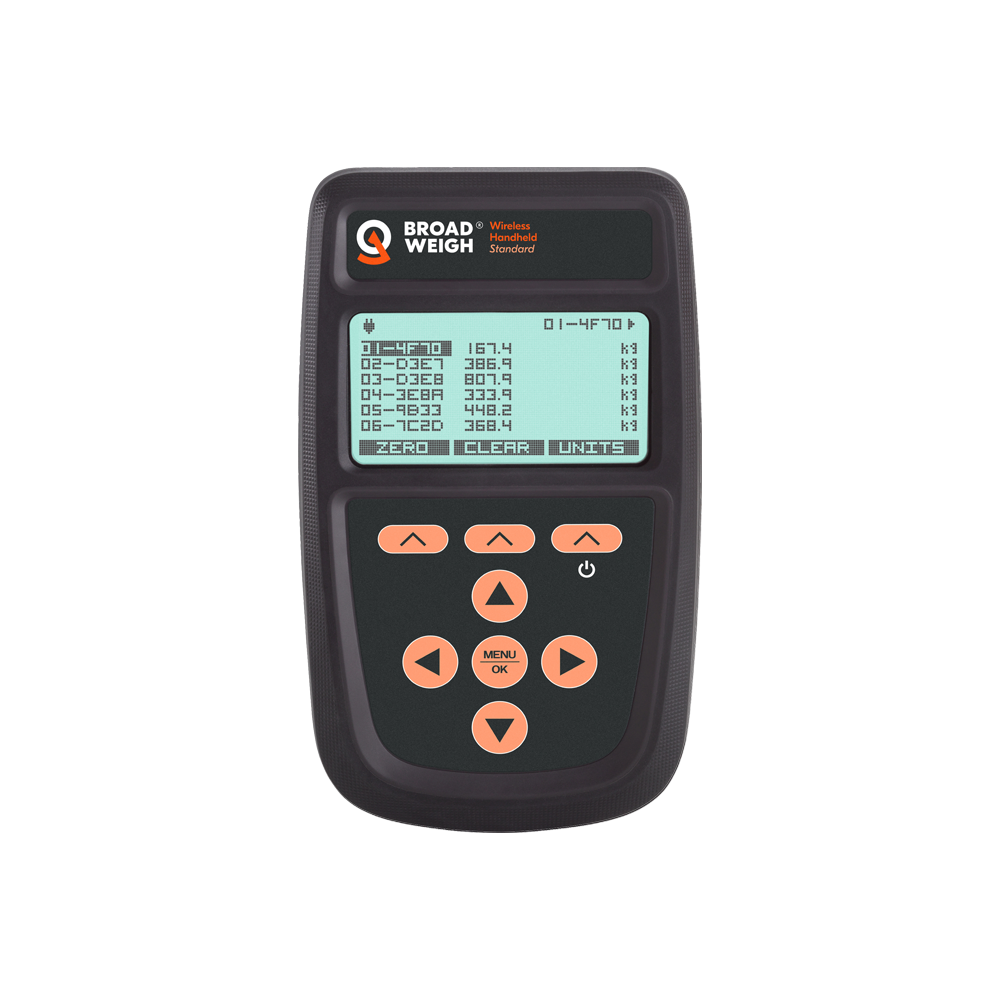

The BW-HK-S is Broadweigh’s next-generation wireless handheld display, providing real-time monitoring of load and wind speed data from up to twelve nearby Broadweigh wireless shackles, cells, or transmitters.
Combining the best features of the previous BW-HR and BW-HA units into a single device, the BW-HK-S offers both simplicity straight out of the box and advanced configuration options for more demanding applications.
In roaming mode, the handheld automatically detects and displays data from up to twelve nearby Broadweigh transmitters, with a wireless range of up to 800 m (2600 ft) line of sight. For tailored setups, users can define up to twelve specific inputs, each configurable with overload alerts and calibrated engineering units to suit individual monitoring requirements.
Configuration is straightforward. Most settings can be managed directly via the handheld’s intuitive menu system. For full configuration control — including saving and loading setups — the free Broadweigh Handheld Toolkit software is available.
The menu system provides access to all configuration options by default. However, administrators can lock or hide menu items and apply PIN protection to prevent unauthorised changes. The display interface itself can also be customised via the Toolkit software to meet specific operational requirements. Firmware updates, for adding of upcoming new features, are carried out through the same platform.
Additional information
- Real-time monitoring of load and wind speed data
- Automatic roaming mode for fast connection to nearby Broadweigh devices
- Supports up to 12 shackles, load cells, or transmitters
- Fully backward compatible with the entire Broadweigh ecosystem
- Configurable inputs with overload alerts and calibrated engineering units
- Wireless range up to 800 m (2600 ft) line of sight
- Compact, rugged enclosure with tactile grip design for mobile rigging teams
- Clear, fully sunlight-readable display
- 2.4GHz radio communication
- Fully weatherised, IP67 rated
- Sleep/wake functionality
- Up to 35 hours continuous operation (or 1.5 years standby)
- Powered by 2 x AA batteries (not included)
804-252120
Broadweigh BW-HK-S Wireless Handheld Display
